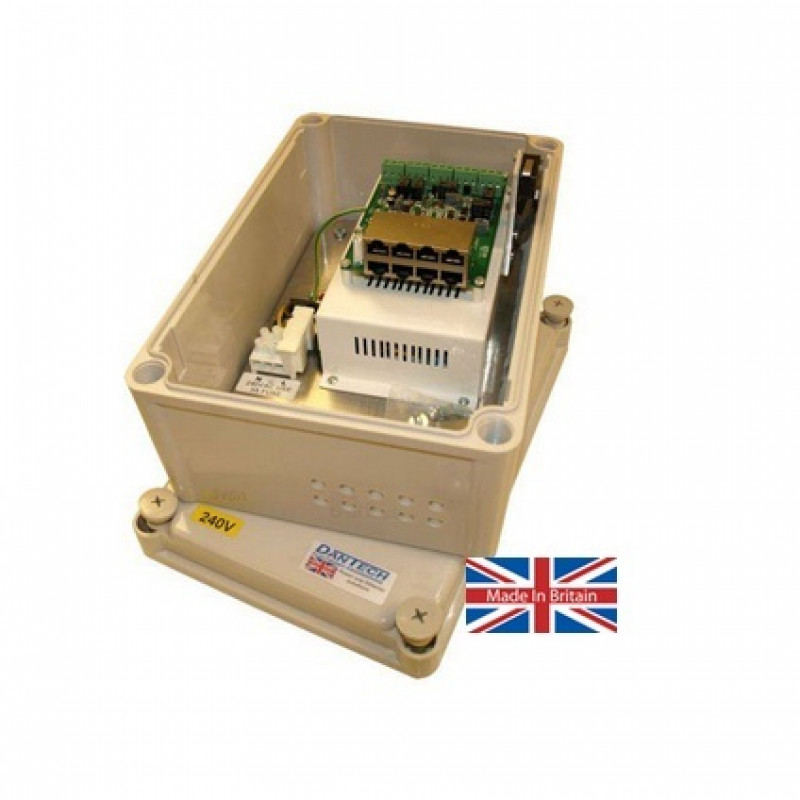

Dantech (DA1000-EX-4) SecurePoE 4x30W Midspan 10/100 EXT - Exterior Wall Mount

A Power over Ethernet midspan power supply with secure enclosure and monitoring. Units will provide up to a full 30W of power to each output.

One, two or four output versions are available. Each output has an RJ45 data port,(e.g. from the network switch) and an RJ45 load port for the PoE device, that outputs the data and power.

Outputs have LED indication to show if a compatible device is connected and powered. In addition there are SPCO clean contacts for monitoring the power status of each output. The unit also has power on LED indication and SPCO clean contacts to signal power failure.

• Midspan power injector with 4 load output ports
• 30W of load power availability per port, to IEEE 802.3:2012
• 90-270V AC, 47-63Hz universal mains input
• Ultra high efficiency operation - up to 96%
  (tested with 120W load)
• Safe power supply design
• System power status LED & monitoring contacts
• Individual port power status LEDs and monitoring contacts
• Monitoring relay contacts can be used for analogue or network interface
  (e.g. AVIs, alarm logs, device alarm inputs; or triggering ancillary equipment)
• Innovative fast entry cable system
• Additional cable entry knock-outs
• Secure weather resistant enclosure
• Lid tamper switch
• Fully backward compatible with automatic load class detection
• Designed for ease of fitting and high reliability
