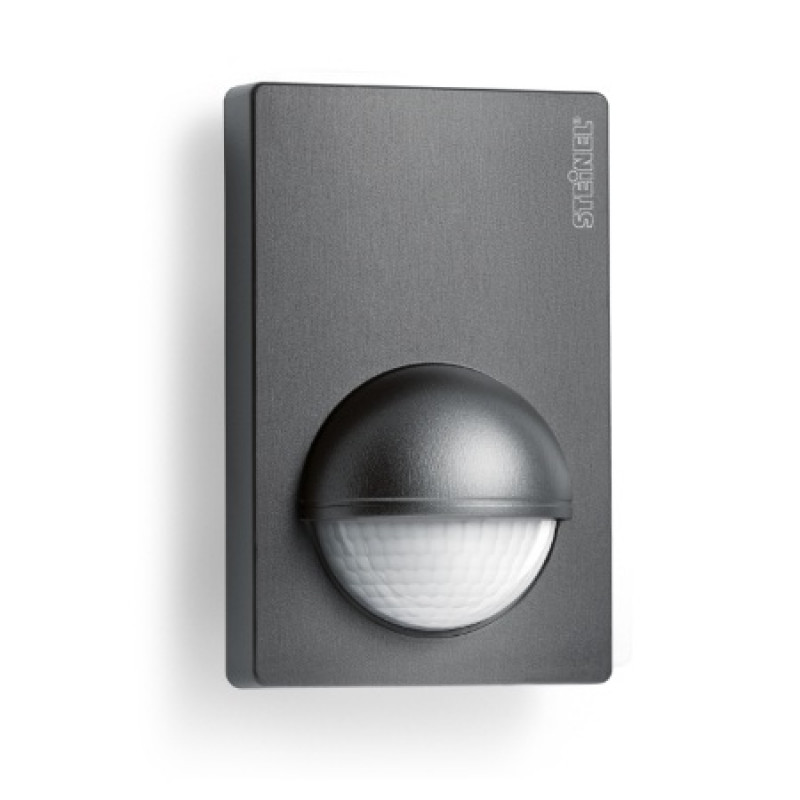

Steinel (034580) IS 180-2/A, Indoor/Outdoor Infrared Motion Detector - Anthracite
- Brand:Steinel
- Product Code:IS 180-2/A
- Availability:Please Call or Email Us to Check Availability
Steinel (034580) IS 180-2/A, Indoor/Outdoor Infrared Motion Detector - Anthracite
Homeowner's darling. Infrared wall sensor IS 180-2, for indoors and out, ideal for expansive building fronts and driveways, suitable for corner mounting with corner wall mount, 180° angle of coverage, reach can be set up to 12 m or up to 5 m, selectable time and twilight threshold, detection zone can be customised with shrouds.
Technical Specifications:
- European Article Number (EAN): 4007841034580
- Type: Motion detectors
- Dimensions: (L x W x H) 120 x 76 x 56 mm
- Mains power supply: 230 V, 50 / 50 Hz
- Sensor Technology: passive infrared
- Application, place: Indoors, outdoors
- Type of installation: Surface wiring
- Switching zones: 504 Schaltzonen
- Electronic scalability: No
- Mechanical scalability: No
- Optimum mounting height: 2 m
- Detection angle: 180 °
- Angle of aperture: 90 °
- Sneak-by guard: Yes
- Capability of masking out individual segments: Yes
- Reach, tangential: r = 5 m (39 m²) / r = 12 m (226 m²)
- Twilight setting TEACH: No
- Twilight setting: 2 – 2000 lx
- Time setting: 10 s – 15 min
- Switching output 1, resistive: 1000 W
- Switching output 1, number of LEDs / fluorescent lamps: 6 stk.
- Constant-lighting control: No
- Basic light level function: No
- With remote control: No
- Interconnection: Yes
- IP rating: IP54
- Material: Plastic
- Ambient temperature: -20 – 50 °C
- Colour: Anthracitel
- Colour, RAL: 9010
- Version: Anthracite
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
