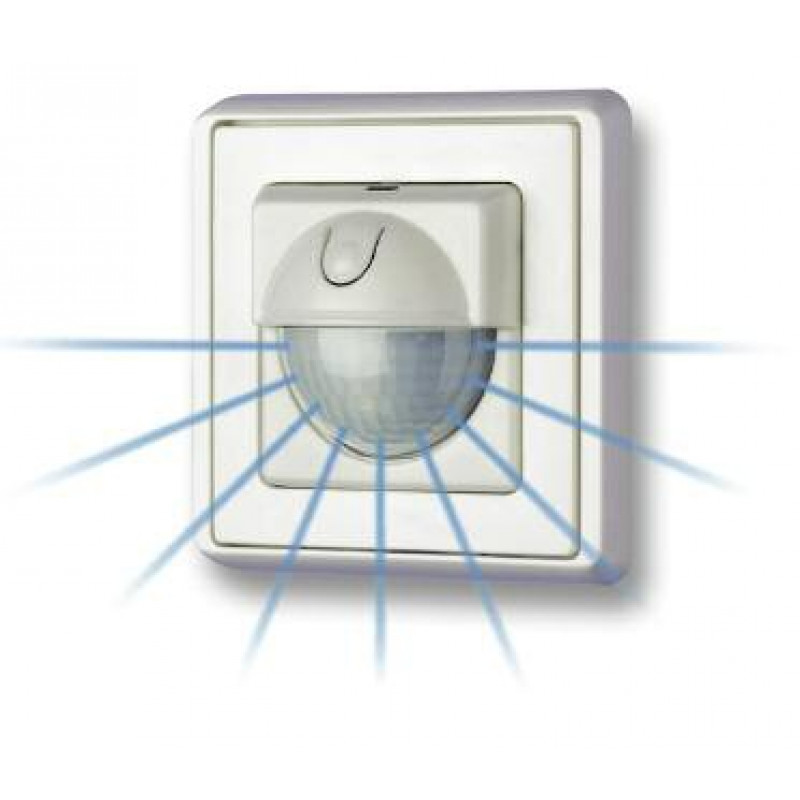

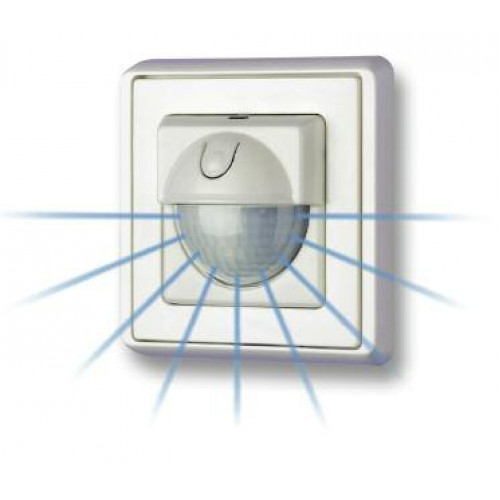

Steinel, IR 180 UP easy, Sensor Switch with Infrared Sensor - White

Steinel, IR 180 UP easy, Sensor Switch with Infrared Sensor - White

The new universal wizard. Lighting automation made easy: the IR 180 UP easy sensor switch is a revolutionary world first. It works in both as 2 and 3-wire installations and can switch all type of lamps ON and OFF. Simply replace existing flush-mounted switches – done! With 180° infrared sensor (8 m reach) and button for manual switching.

Technical Specifications:

• European Article Number (EAN): 4007841055790
• Type: Motion detectors
• Dimensions (L x W x H): 81 x 81 x 57 mm
• Mains power supply: 220 – 240 V , 50 / 60 Hz
• Sensor Technology: passive infrared
• Type of installation: Concealed wiring
• Electronic scalability: No
• Mechanical scalability: No
• Mounting height: 0.90 – 2.20 m
• Optimum mounting height: 1.10 m
• Detection angle: 180 °
• Angle of aperture: 90 °
• Sneak-by guard: Yes
• Reach, radial: r = 3 m (14 m²)
• Reach, tangential: r = 8 m (101 m²)
• Twilight setting TEACH: Yes
• Twilight setting: 2 – 1000 lx
• Time setting: 5 s – 30 min
• Switching output 1, resistive: 200 W
• Switching output 1, number of LEDs / fluorescent lamps: 4 stk.
• Constant-lighting control: No
• Basic light level function: No
• With remote control: No
• Interconnection: Yes
• IP rating: IP20
• Material: Plastic
• Ambient temperature: 0 – 40 °C
• Colour: white
• Colour, RAL: 9010
• IDs, certificates: VDE

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
