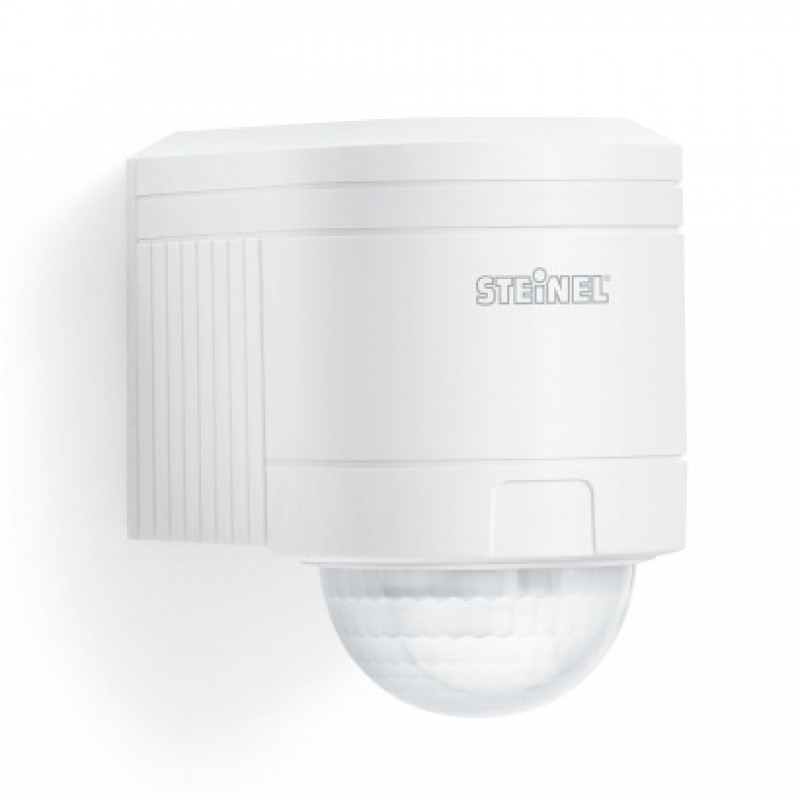

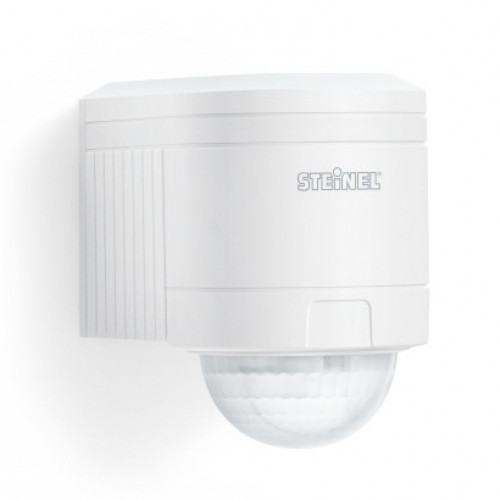

Steinel, IS 240 DUO/W, Indoor/Outdoor Infrared Wall Sensor - White
- Brand:Steinel
- Product Code:IS 240 DUO/W
- Availability:Please Call or Email Us to Check Availability
Steinel, IS 240 DUO/W, Indoor/Outdoor Infrared Wall Sensor - White
Round the corner. Infrared wall sensor IS 240 DUO, for indoors and out, 240° angle of coverage, reach up to 12 m, selectable time and twilight threshold, detection zone can be customised with shrouds.
Technical Specification:
- European Article Number (EAN): 4007841602819
- Type: Motion detectors
- Dimensions: (L x W x H) 90 x 60 x 100 mm
- Mains power supply: 230 – 240 V , 50 / 50 Hzz
- Sensor Technology: passive infrared
- Application, place: Indoors, outdoors
- Type of installation: Surface wiring
- Switching zones: 276 Schaltzonen
- Electronic scalability: No
- Mechanical scalability: No
- Optimum mounting height: 2 m
- Detection angle: 240 °
- Angle of aperture: 180 °
- Sneak-by guard: Yes
- Capability of masking out individual segments: Yes
- Reach, tangential: r = 12 m (302 m²)
- Twilight setting TEACH: No
- Twilight setting: 2 – 2000 lx
- Time setting: 10 s – 15 min
- Switching output 1, resistive: 1000 W
- Switching output 1, number of LEDs / fluorescent lamps: 6 stk.
- Constant-lighting control: No
- Basic light level function: No
- With remote control: No
- Interconnection: Yes
- IP rating: IP54
- Material: Plastic
- Ambient temperature: -20 – 50 °C
- Colour: white
- Colour, RAL: 9010
- Version: white
