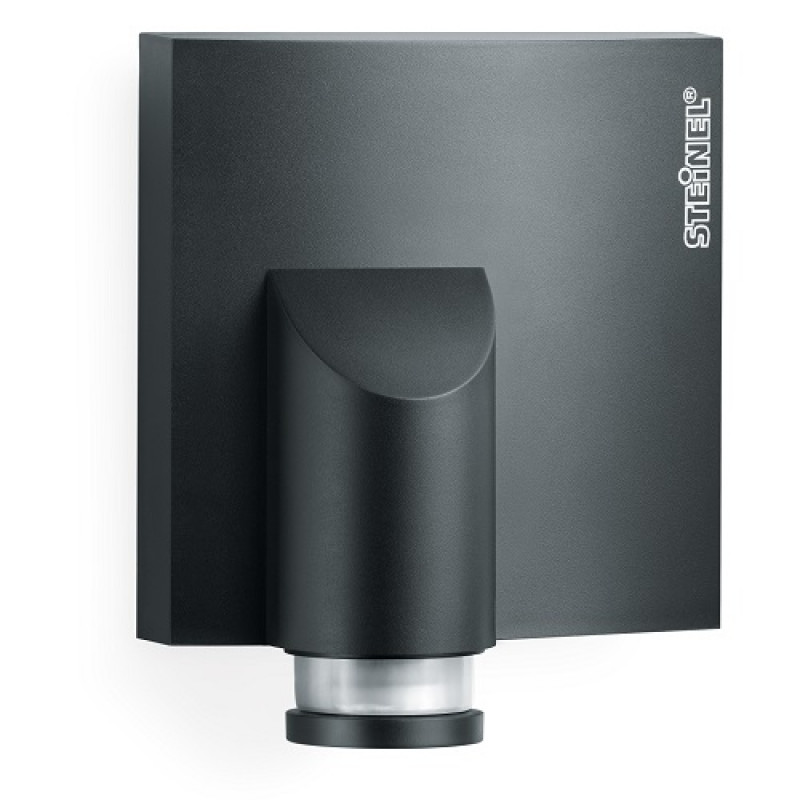

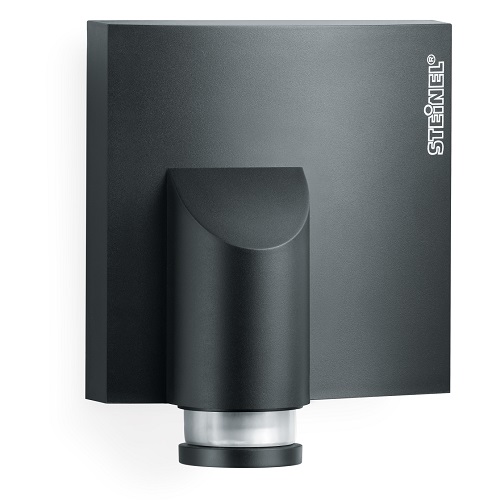

Steinel, IS NM 360/B, IR Designer Motion Detector with Mini-Sensor - Black

Steinel, IS NM 360/B, IR Designer Motion Detector with Mini-Sensor - Black

Motion detector and photo-electric lighting controller in one. Infrared motion detector IS NM 360, for indoors and out, ideal for building fronts and driveways, 360° angle of coverage, reach up to 8 m all round, selectable time and twilight threshold, 4 function programmes geared to practical needs, with optional manual override.

Technical Specifications

• European Article Number (EAN): 4007841609214
• Type: Motion detectors
• Dimensions: (L x W x H) 114 x 100 x 58 mmm
• Mains power supply: 220 – 240 V , 50 / 50 Hz
• Sensor Technology: passive infrared
• Application, place: Indoors, outdoors
• Type of installation: Surface wiring
• Switching zones: 512 Schaltzonen
• Electronic scalability: No
• Mechanical scalability: No
• Optimum mounting height: 2 m
• Detection angle: 360 °
• Angle of aperture: 90 °
• Sneak-by guard: Yes
• Capability of masking out individual segments: Yes
• Reach, tangential: Ø 16 m (201 m²)
• Twilight setting TEACH: No
• Twilight setting: 2 – 2000 lx
• Time setting: 5 s – 15 min
• Switching output 1, resistive: 1000 W
• Switching output 1, number of LEDs / fluorescent lamps: 6 stk.
• Constant-lighting control: No
• Basic light level function: No
• With remote control: No
• Interconnection: Yes
• IP rating: IP54
• Material: Plastic
• Ambient temperature: -20 – 50 °C
• Colour: black
• Colour, RAL: 9005
• Version: black
