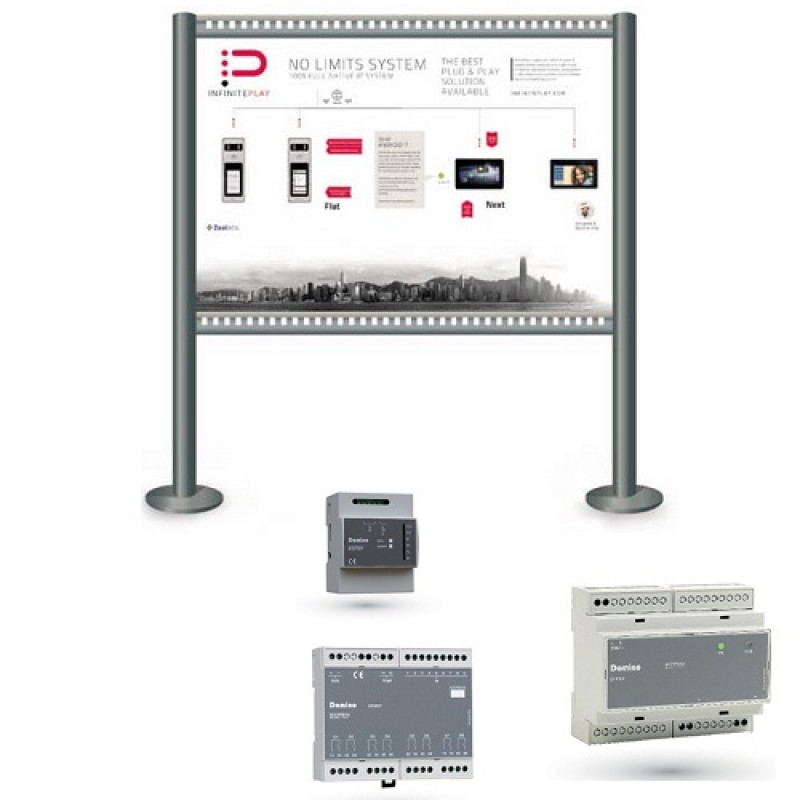

InfinitePlay (ZP004) Large Panel for Home Automation

InfinitePlay (ZP004) Large Panel for Home Automation

Consists of functional items:

• Z1001 Flat entrance panel 1-4 touch buttons
• Z6001 Server SIP Power supply
• Z7000 Next 7” video door phone white
• KIT Home Automation Infinitedome

Z1001 Audio/video FLAT entrance panel in AISI 316 stainless steel, with 1 to 4 touch buttons, electronic IP module, colour video camera with 5 mpx sensor and white LED illumination.

Z6001 PoE power supply for residential or condominium. SIP server system INFINITEPLAY in DIN casing with 12 modules for entrance panels and monitors.

Z7000 Next IP hands-free, two-channel monitor with 7”, WVGA resolution, TFT LCD, capacitive touch-screen, in white finish. Mounting bracket as standard. This IP monitor features a seven inch touch screen display with an incredibly simple to use interface.  Unlike most video monitors, this model is compatible with hundreds of Android apps and has an internet browser.

KIT Home Automation Infinitedome
DFAPP Gateway module between the Ethernet network and the Domino bus. It allows to control the home automation system through applications iCasaMia and ACasaMia available for free on the related stores. DFAPP allows the programming of the system functions, reading and editing of operating programs, updating firmware of modules and more yet through the Ethernet network, both locally and remotely.

DF8RIT Multifunctional module with 8 digital inputs for potential free contacts, 8 power-relay outputs which can be set for the ONOFF command of generic loads or, as pairs, for the management of rolling shutters, awnings and similar devices driven by double winding motors, 1 analog input for temperature probe. DF8RIT has also an ambient temperature regulator function, featuring weekly programming.

DFST/A Temperature probe for DF8RIT analog input.

DFPW2 Module that generates the proper power supply required by the modules connected to Domino bus.

Dimensions: 150 L x 100 h with legs 200h
