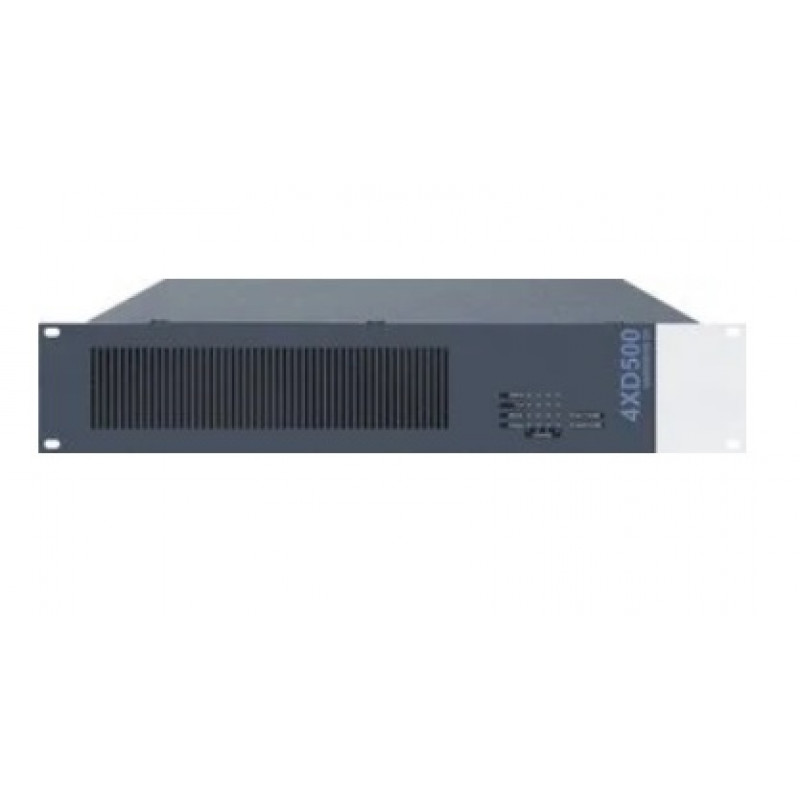

Honeywell (580249.11) Digital Power Amplifier with Four 500W Channels

Honeywell (580249.11) Digital Power Amplifier with Four 500W Channels

  • Brand:Honeywell
  • Product Code:580249.11
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Honeywell (580249.11) Digital Power Amplifier with Four 500W Channels

Power amplifier for the voice alarm system VARIODYN D1 in class D technologies with four independent power channels and galvanic isolated 100 V direct outputs, symmetric inputs, inrush current limitation and soft start. In comparison to our 4XDxxxB series amplifiers, one amplifier can back up another amplifier. Four built-in fans with smooth temperature controlled speed control.

Key Features:

  • Built- in electronic protective circuit against thermal overload, DC signals, sub frequent signals, short circuit, open outputs and HF interference.
  • Individual status LEDs indicate channel CLIP, PROTECT, SIGNAL, POWER, LINE and 24 V DC power Back switch contact for sequential remote power.
  • 2 back fault message contacts.
  • Back fault message contact for missing 24 V emergency power supply.
  • 24 V emergency power supply input.
  • Suitable for use with loop technology.

Specifications:

  • Rated voltage : 230 V AC.
  • Rated frequency : 50 Hz - 60 Hz.
  • Emergency power supply : 24 V DC.
  • Technology : Class D.
  • Channel separation : 92 dB.
  • Harmonic distortion at nominal level : 0.02 %.
  • Ambient temperature : -5 °C - 55 °C.
  • Color : gray, similar to RAL 7016.
  • Dimensions : W: 484 mm H: 88 mm D: 400 mm (2 HU 19").

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
