Honeywell (583351) D1 Visual Control Module (VCM)
- Brand:Honeywell
- Product Code:583351
- Availability:Please Call or Email Us to Check Availability
Honeywell (583351) D1 Visual Control Module (VCM)
The VCM (Visual Control Module) forms part of the Honeywell Voice Alarm system and provides a user interface for EN54-16 compliance.

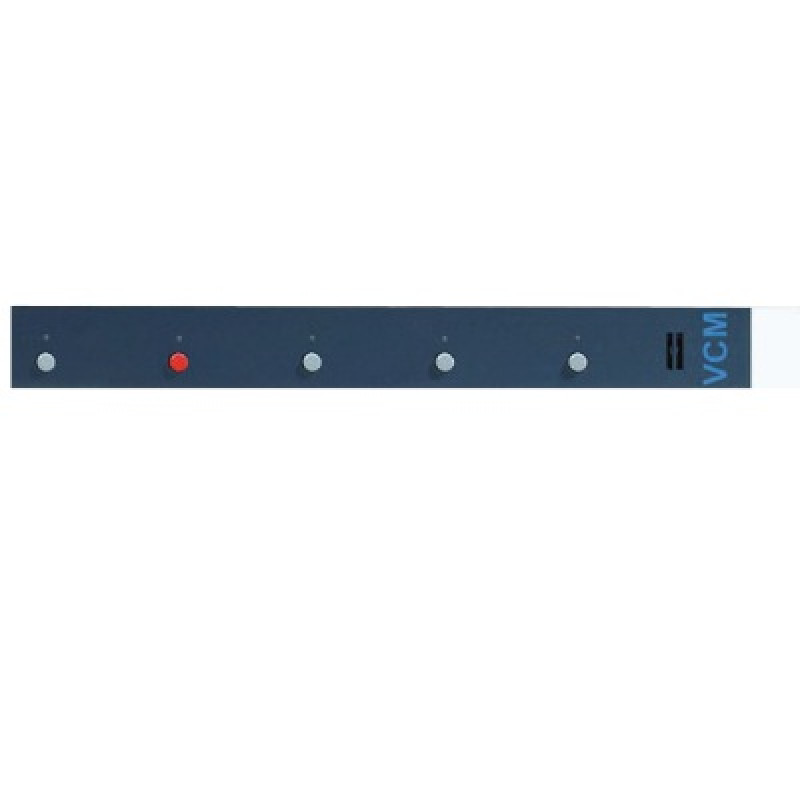

The VCM enables the standardised display of messages and has a 5-button operator control panel. At least one VCM is required for EN54-16 systems.
Key Features:
- Module for displaying collective messages from the Honeywell Voice Alarm System
- For displays and operation in accordance with EN54-16
- 5 operating buttons
- LEDs as visual indicators
- Buzzer for acoustic signaling
- EN 54-16 approved
- CPD No. 0786-CPD-20997
Technical Specifications:
- Height, Width, Depth: 483mm, 44mm, 33mm
- Body Color: Grey, similar to RAL 7016
- Maximum current consumption: 20 mA at 24V
- Ambient temperature: -5 ̊C to +55 ̊C
- Humidity: 15 % to 90 %
For more details, please refer with our attached datasheet.
