Videx, 3111, 3000 Series 2 Button Handset with Electronic Calltone

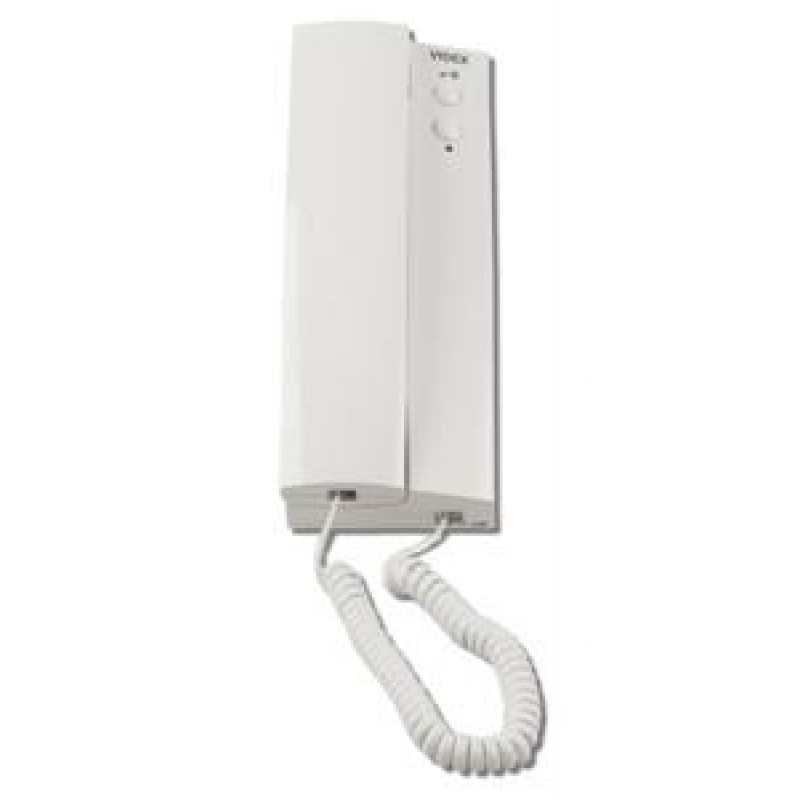

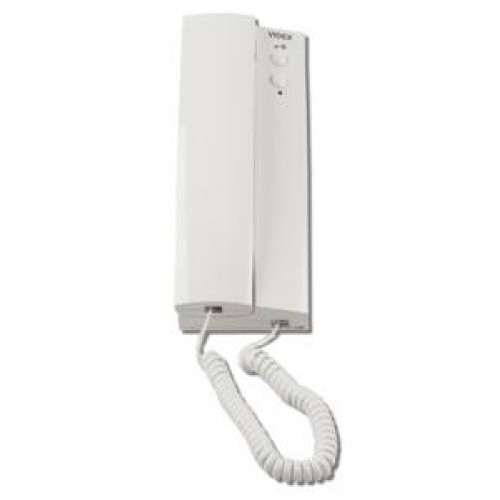

3111, VIDEX, 3000 SERIES 2 BUTTON HANDSET with ELECTRONIC CALLTONE

This 2 button telephone includes a three position call tone volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. This handset has a plug in replaceable handset cord and can be desk mounted with the addition of a 3038A desk kit. Includes a lock release button and dry contact service button.

Specifications:

• Material: White ABS plastic
• No. Of cores to telephone: 4
• Recommended cable type: CW1308
• AC buzzer call tone: No
• Electronic call tone: Yes
• Call tone volume setting: Yes
• Lock release button: Yes
• Dry contact button: Yes
• Privacy of speech between handsets: No
• Slide mute switch: No
• Slide mute switch with on/off LED: No
• Terminal markings:
   1. Transmit speech
   2. Receive speech
   3. 0Vdc
   4. Electronic call tone
   5. Lock release
   8 & 9. Dry contact switch

For more details, please refer with our attached datasheet.
