Videx, 3162, 3000 Series 2 Button Handset with On/Off Switch for VX2200 Systems (For Basic Systems Only)
- Brand:Videx
- Product Code:3162
- Availability:Please Call or Email to Checkout

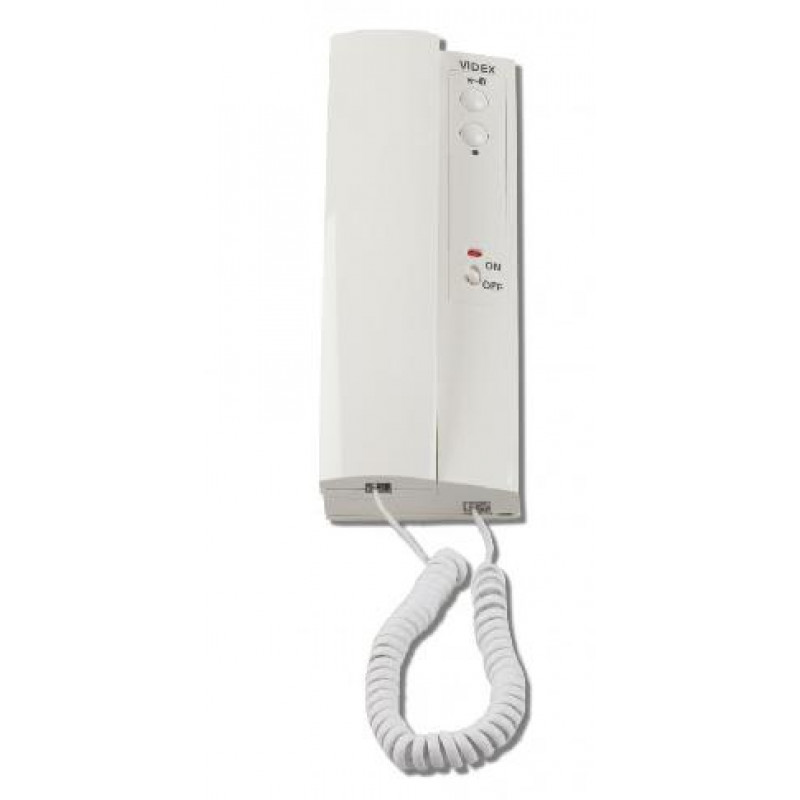

3162, Videx, 3000 Series 2 Button Handset with On/Off Switch for VX2200 Systems (For Basic Systems Only)
Low cost 3000 Series 2 button handset with slide mute switch for VX2200 system. Upto 255 of these telephones can be connected on the same bus but this handset can not be used on systems with a concierge or video systems.
It has an 8 way dipswitch for programming and voltage free contacts for 2nd button. Maximum of 3 devices per call button. These handsets do not work with isolated, video and multi level installations or with concierge. Includes a slide mute switch for do not disturb feature.
Specifications:
- Material: White ABS plastic
- No. Of cores to telephone: 2
- Recommended cable type: CW1308
- AC buzzer call tone: No
- Electronic call tone: Yes
- Call tone volume setting: Yes
- Lock release button: Yes
- Dry contact button: Yes
- Privacy of speech between handsets: Yes
- Slide mute switch: Yes
- Push mute switch with on/off LED: No
- Timed mute: No
- Door open LED: No
- System: VX2200
Terminal markings:
- L - Bus (7.5Vdc)
- - - 0V
- SW, SW - Dry contact service button
