Videx, 5178, Audio Apartment Station with Half Duplex and Simplex Speech for VX2200 Systems in White Finish

5178, Videx, Audio Apartment Station with Half Duplex and Simplex Speech for VX2200 Systems in White Finish

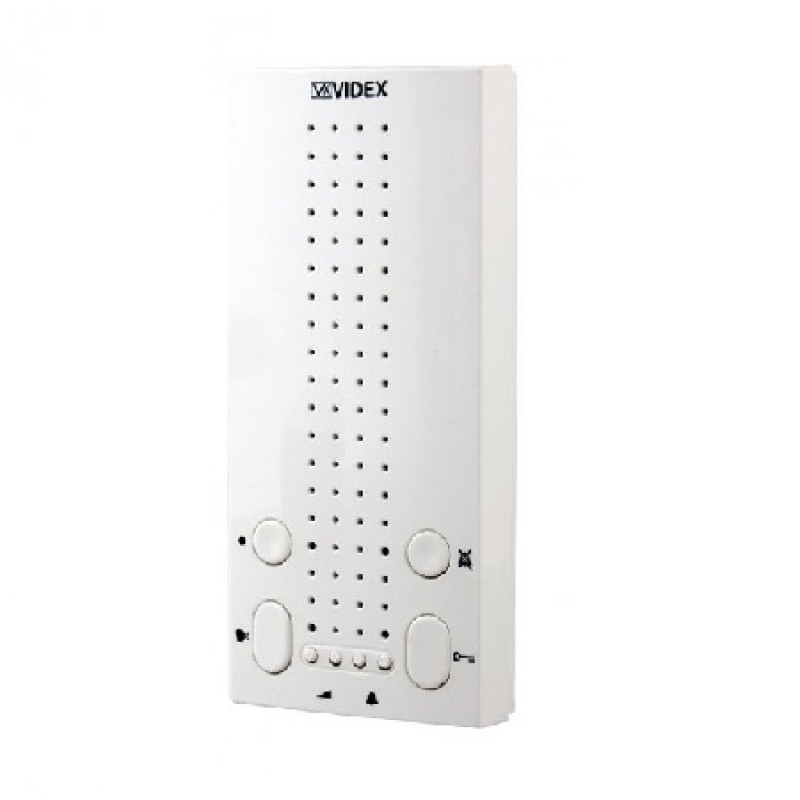

The 5178 is an audio apartment station in white ABS plastic and is a surface mount unit which connects to the VX2200 bus via a 4 wire bus. The apartment station has half duplex speech (Handsfree speech) and the facility to switch into simplex speech mode by holding the talk/answer button down. The apartment station includes the following buttons. Service push button - When pressed, shorts terminal  to terminal GND (ground). Answer button - On an incoming call, operation of this button allows the user to answer and converse with the visitor. The LED next to the button will illuminate. Switch off button - With the system switched on (Call in progress), momentary operation of the button will switch the apartment station off. The apartment station will also automatically switch off after a time delay if the button is not pressed. The LED next to the button will go off. Simplex button - Pressing and holding the button for more than 3 seconds will switch the apartment station into SIMPLEX speech mode. Press and hold the button to speak to the caller (The LED next to the button will flash rapidly), release the button to listen (The LED will flash slowly). If the button is not pressed for 10 seconds the apartment station will switch off.
The apartment station will revert to duplex speech when another call is made.
Privacy on-off button - Press enable/disable the service. The LED next to the button will illuminate when the privacy service is enabled.
Concierge call button  While in standby, press this button to call the concierge (If service is available).
Door open button - During a call, operation of this button will activate the door open relay (NO1, NC1, COM1).
Calltone volume controls 3 levels available. Press the left key to decrease volume and the right to increase volume.
Choose calling melody 9 melodies available. See programming section for operation of these buttons

Specifications:

• Buttons: 4 Large, 4 small
• Speech: Half duplex and selectable simplex
• Lock button: Yes
• Speak button: Yes
• Service buttons: 1
• LED\'s: 4
• Privacy: Timed with LED
• Dimensions: 74mm (W) x 164mm (H) x 23.5mm (D)
• System: VX2200
• Colour: White

For more details, please refer with our attached datasheet.
