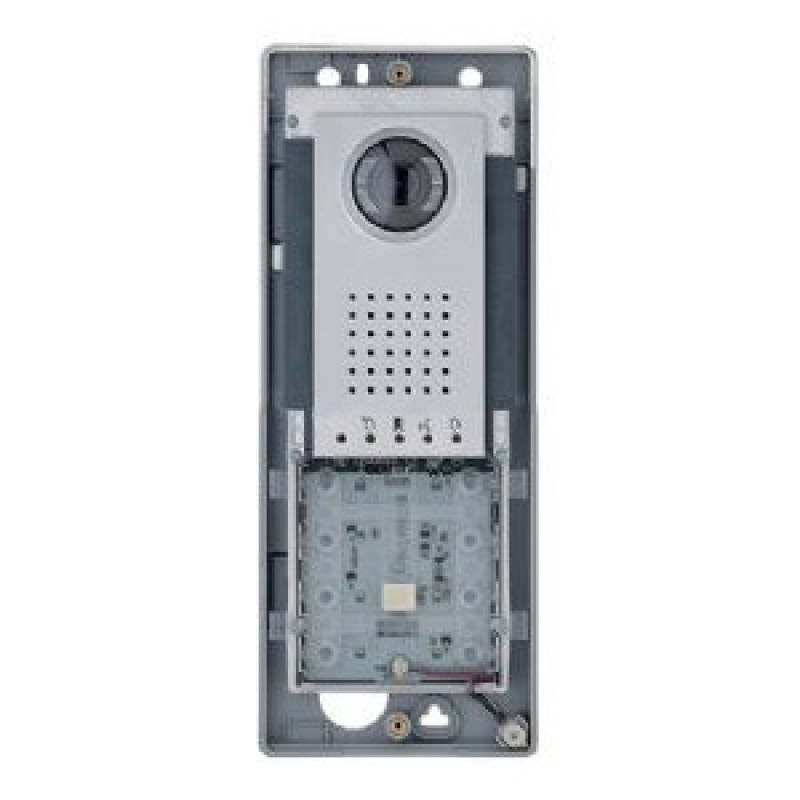

CAME BPT (DVC/01ME) Thangram Colour Video Entry Panel (Satin Chrome)

CAME BPT (DVC/01ME) Thangram Colour Video Entry Panel (Satin Chrome)

Thermoplastic Body Finished In Metal-Colour Satin-Finish Chrome.

Thangram is a BPT's line of modular entry panels: it is the first designed for use with the new IP digital-technology system (XiP system), and a model that offers superlative-quality colour video.

The entry panels in the Thangram range are distinctive for their attractive, innovative styling, ultra-slim design, unparalleled performance and the possibility of creating any type of entry panel by combining just 7 elements. A new generation of entry panels that are both beautiful and sophisticated.

Key Features:

• Circuit board for X1 system, microphone and loudspeaker.
• NTSC/PAL video camera, resolution 680x512 with built-in microprocessor for digital signal processing, horizontal angle of aperture 82° with digitally-controlled zoom.
• Caller illumination using 4 high-efficiency LEDs.
• Protection rating IP 54.
• Dimensions (WxHxD): 99x254x25 mm.
• Decor panel not included.
• Adjustment of microphone/loudspeaker volume and door lock release time.
• Simple connection using pre-wired flat cables (supplied as standard) and mini USB connector for programming with software tool.
• Local command for door lock, inputs for door lock release buttons, door status signalling devices, output connector for activation of external cameras.
• Blue LEDs (8) for backlighting of keys with name label.
• LEDs for visual control of the status of the system: red “call connected” LED, green “door open” LED, yellow “call in progress” LED, blue “system busy” LED.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
