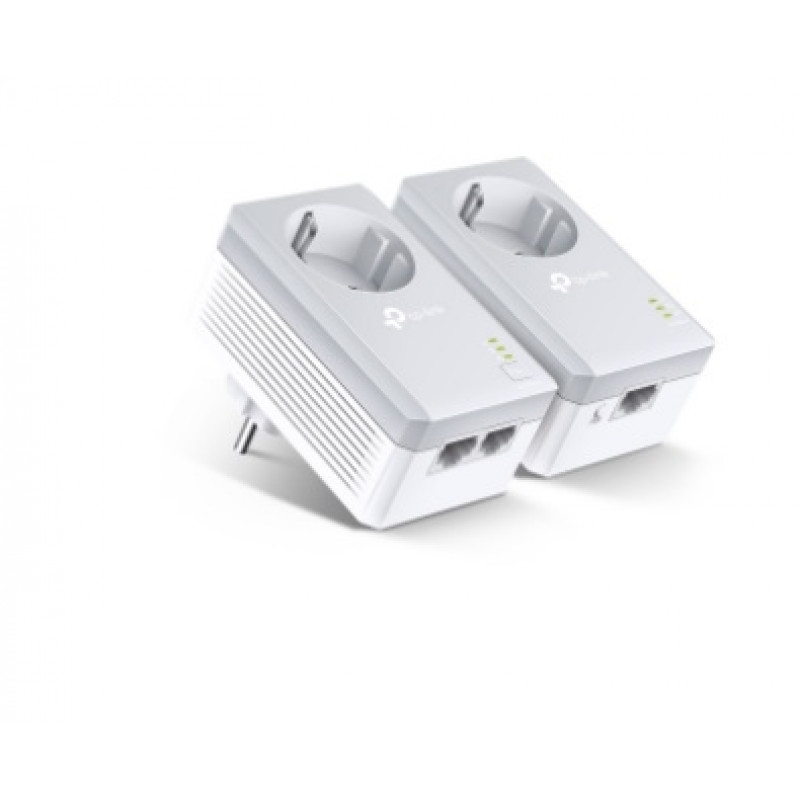

TP-Link, TL-PA4022P KIT, AV600 Passthrough Powerline Adapter KIT

TP-Link, TL-PA4022P KIT, AV600 Passthrough Powerline Adapter KIT

The TL-PA4022P KIT transforms your home’s existing electrical circuit into a high speed network. No configuration is required — plug your adapter into a power socket and establish a connection within minutes. TL-PA4022P KIT automatically switches from its regular working more to efficient Power-Saving mode when not in use, reducing energy consumption by up to 85%.

Note: Powerline adapters should be deployed on the same circuit and in sets of two or more.

Key Features:

• Data transmission rates of up to 600 Mpbs over household electrical circuits, ideal for HD video streaming
• Ethernet ports allow connection of wired internet devices such as desktop computers
• Integrated power sockets ensure no power outlet goes to waste
• Plug-and-play design and easy encryption at the push of a pair button
• Power-Saving mode automatically reduces power consumption by up to 85%.

Specifications:

• HARDWARE FEATURES :
• Standards and Protocols - HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u
• Buttons - Pair Button
• Power Consumption -
  • TL-PA4010P: Maximum: 2.61W; Typical: 2.27W; Standby: 0.55W
  • TL-PA4020P: Maximum: 2.93W; Typical: 2.68W; Standby: 0.57W
• LED indicator - Power, Powerline, Ethernet
• Dimensions - 1.7 x 2.3 x 3.7 in (42 x 58 x 95 mm)
• Scope - Up to 300 meters / 1000 feet over existing electrical wiring
• Transmission Speeds -
  • Powerline: up to 600 Mbps
  • Ethernet: 10/100 Mbps
• SOFTWARE CHARACTERISTICS :
• Security - 128-bit AES Encryption
• Modulation Technology - OFDM
• OTHERS :
• Certifications - CE, RoHS
• Package content:
  • AV600 2-port Passthrough Powerline Starter Kit (1 x TL-PA4010P + 1 x TL-PA4020P)
  • 2 x 2-meter Ethernet Cable
  • Quick Installation Guide
• System Requirements - Windows XP / Vista / 7/8 / 8.1 / 10, Mac OS X (10.7 or later), Linux
• Environmental factors -
  • Operating Temperature: 0 ° C ~ 40 ° C (32 ° F ~ 104 ° F)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ° F ~ 158 ° F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing.
