CDVI, RX26-XPL54, 4 Relay Receiver, 500 Transmitter Memory
- Brand:CDVI
- Product Code:RX26-XPL54
- Availability:Please Call or Email Us to Check Availability

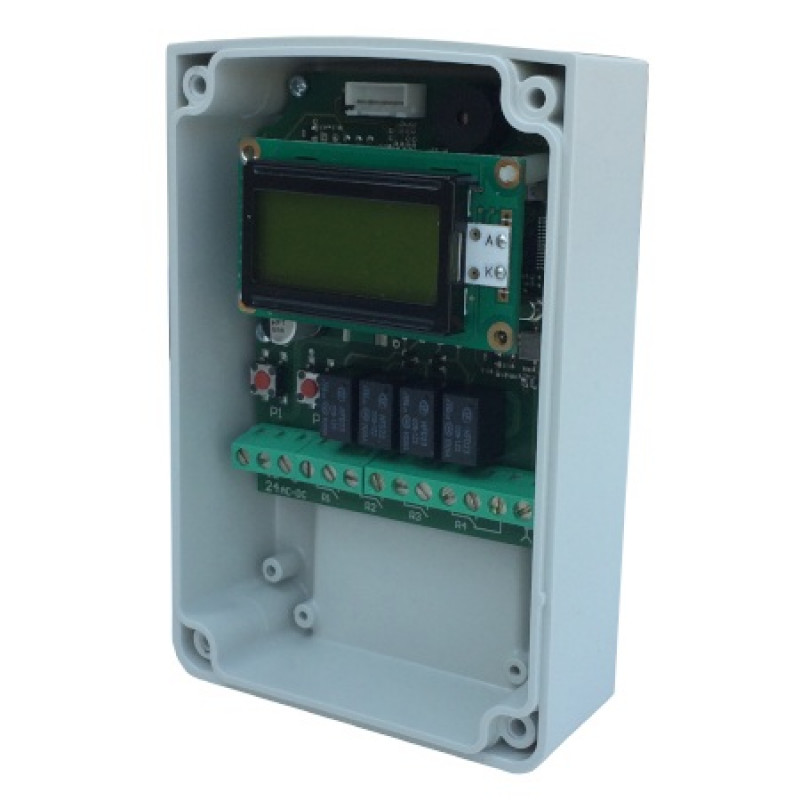

CDVI, RX26-XPL54, 4 Relay Receiver, 500 Transmitter Memory
The RX26-XPL5 series allows the easy operation and programming of the RX26-XPL whilst increasing the memory to 500 transmitters and adding an IP55 enclosure.
Each relay can be separately configured for pulse, timed or latch modes, with a maximum contact rating of 24VA at 60V. Security is upheld by the use of Keeloq rolling code decryption.
The RX26-XPL5 also comes in a 2 relay version (RX26-XPL5). An input is available for the SEA433 tuned aerial.
Key Features:
- 4 Relays
- 500 Transmitter memory
- 12Vac/dc
- Keeloq® Hopping Code
- IP55
Specifications:
- Relay: 4, 3 NO and 1 NO/NC
- IP Rating: IP55
- Memority capacity: 500 transmitters
- Demodulation: AM/ASK
- Frequency: 433.92 Mhz
- Encoding: Keeloq® Hopping Code
- Power supply: 12 to 24Vac/dc
- Dimensions: 123 x 81,5 x 41,5mm
- Environment: -20°C to 70°C
