CDVI, RX26-Z2, 2 Channel External Receiver - 433.92 MHZ

0 reviews

Write a review

Brand:CDVI
Product Code:RX26-Z2
Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

Description
Reviews (0)

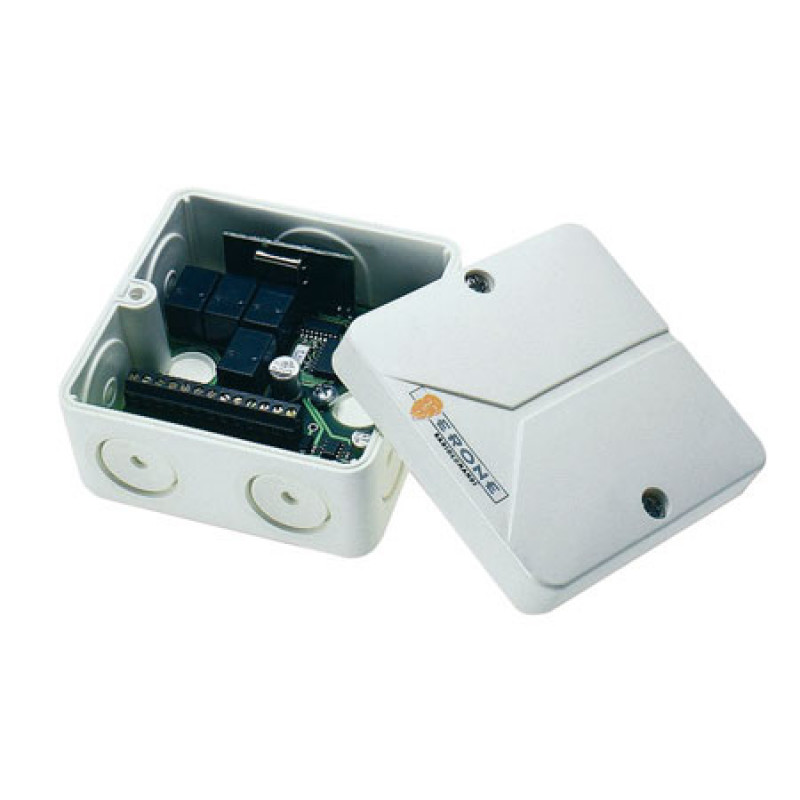

CDVI, RX26-Z2, 2 CHANNEL EXTERNAL RECEIVER- 433.92 MHz

The RX26-Z series are external receivers housed in weather resistant enclosures. Ideal for control of external gates or barriers. They are available in 2 or 4 relays. Each relay can be separately configured for pulse or step modes, with a maximum contact rating of 24VA.

Security is upheld by the use of Keeloq® rolling code decryption.The RX26-Z also comes in 12 or 24Vac/dc. An input is available for the SEA433 tuned aerial to increase transmitting range

2 or 4 relays mini receivers
Up to 85 transmitters
Pulse or step mode for 1 relay
12 or 24Vac/dc
Keeloq® Hopping Code

Technical information:

Material: Polycarbonate housing
Frequency: 433.92MHz
Modulation: AM/ASK
Encoding: Keeloq® Hopping code
Number of code combinations: 2exp64
Memory capacity: 85 transmitters
Power supply: 12/24 Vac/dc
Relay contact rating: 24VA
Consumption: @12Vdc=18 mA, @24Vdc=41 mA
IP65 rated
80 x 80 x 50mm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
