CDVI, RX26-Z4, 4 Channel External Receiver - 433.92 MHz

CDVI, RX26-Z4, 4 Channel External Receiver - 433.92 MHz

  • Brand:CDVI
  • Product Code:RX26-Z4
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

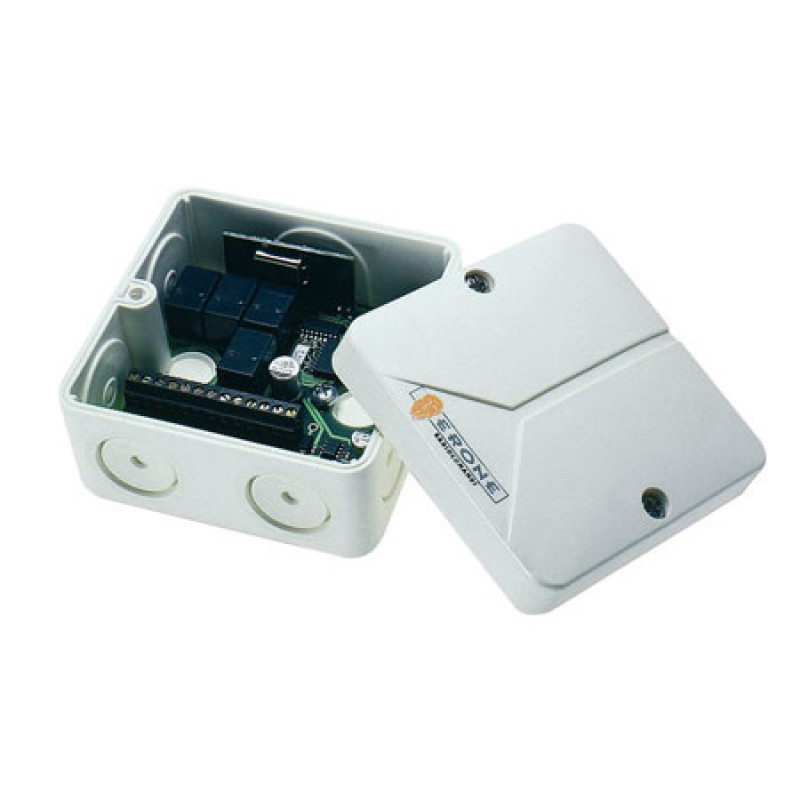

CDVI, RX26-Z4, 4 CHANNEL EXTERNAL RECEIVER- 433.92 MHz

The RX26-Z series are external receivers housed in weather resistant enclosures. Ideal for control of external gates or barriers. They are available in 2 or 4 relays. Each relay can be separately configured for pulse or step modes, with a maximum contact rating of 24VA.

Security is upheld by the use of Keeloq® rolling code decryption.The RX26-Z also comes in 12 or 24Vac/dc. An input is available for the SEA433 tuned aerial to increase transmitting range

  • 2 or 4 relays mini receivers
  • Up to 85 transmitters
  • Pulse or step mode for 1 relay
  • 12 or 24Vac/dc
  • Keeloq® Hopping Code

Technical information:

  • Material: Polycarbonate housing
  • Frequency: 433.92MHz
  • Modulation: AM/ASK
  • Encoding: Keeloq® Hopping code
  • Number of code combinations: 2exp64
  • Memory capacity: 85 transmitters
  • Power supply: 12/24 Vac/dc
  • Relay contact rating: 24VA
  • Consumption: @12Vdc=18 mA, @24Vdc=41 mA
  • IP65 rated
  • 80 x 80 x 50mm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
