CDVI, SELW-2630MF, 1 External Wiegand receiver

0 reviews

Write a review

Brand:CDVI
Product Code:SELW-2630MF
Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

Description
Reviews (0)

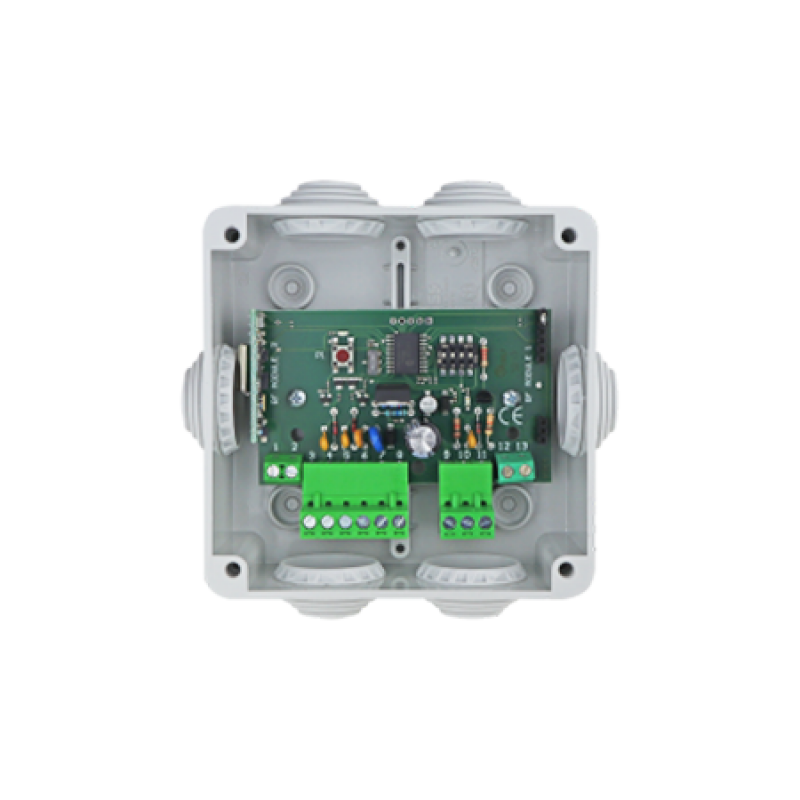

CDVI, SELW-2630MF, 26 & 30 Bit Wiegand External Receiver

The SELW-2630MF is an access control receiver with 26 or 30-bit wiegand output. It is suitable for external use and ideal for gates and barriers.

The SELW-2630MF is compatible with all CDVI TX26 series transmitters.

The SEA433 can be used as an optional tuned antenna with this receiver for better reception.

Wiegand receiver for outdoor use
Ideal for gates & barriers
Up to 100m range
Optional tuned antenna
Compatible with all CDVI rolling code transmitters

Technical information:

Surface mounting
Rolling code, 433 Mhz Keeloq
Modulation: AM / ASK
Wiegand 26 bit*
Range: up to 100m in open field
Operating voltage: 12/24Vac/dc
Max current: 24mA
Dimensions: 128 x 128 x 57mm
*30 bit allows 4 serial codes from the transmitter on A, B, C & D buttons.
Environment: -20°C to +70°C
IP55

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
