SEFB2408, Fixed 8m infrared beam, battery powered

SEFB2408, Fixed 8m infrared beam, battery powered

  • Brand:CDVI
  • Product Code:SEFB2408
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

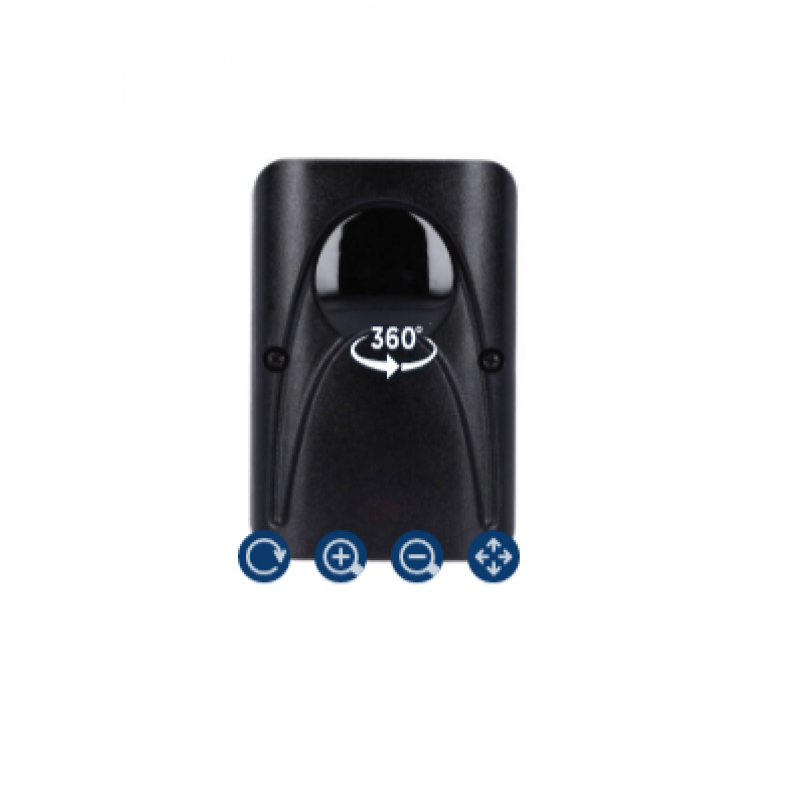

SEFB2408, Fixed 8m infrared beam, battery powered

This battery-powered infrared photocell is ideal for protecting the active zone on automatic swing/sliding doors and gates. By triggering the moving unit to automatically stop if a person or obstacle is detected in the zone, injuries and accidental damage can be prevented. This model has a 8m range between the transmitter producing the infrared beam, and the receiver picking it up at the other end. If the beam is interrupted, the desired action (such as halting machinery) is triggered.

  • Active infrared photocell
  • Ideal for protecting active machinery zones such as automatic doors
  • Trigger immediate stoppage of machinery when a person is detected
  • Flat models for discreet mounting
  • Up to 8m range between beam transmitter and receiver
  • Battery-powered for installations where wiring is tricky

TECHNICAL SPECIFICATIONS

  • Number of Relays: 2
  • Mounting: Surface
  • Min Temperature (°C): -10
  • Max Temperature (°C): 55

ELECTRICAL SPECIFICATIONS

  • Min. Voltage (V): 12Vac/dc
  • Max Voltage (V): 24Vac/dc
  • Voltage AC/DC: AC/DC
  • Battery included: Yes

CERTIFICATIONS

  • IP Rating: IP55

APPEARANCE

  • Surface Material: Polycarbonate
  • Colour: Black

DIMENSIONS:

  • Product Height (mm): 98
  • Product Width (mm): 60
  • Product Depth (mm): 22
  • Product Weight (kg): 0.19
