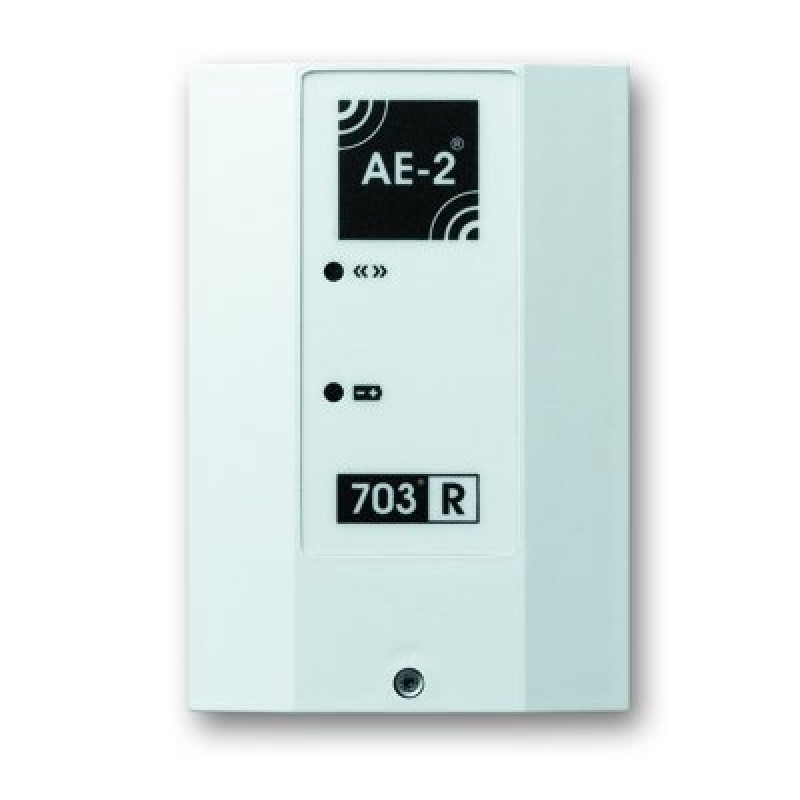

COOPER(Scantronic), 703reur-00, 4 Channel Universal Contact Transmitter, Polycarbonate Housing 2 Indicator LEDs

703reur-00, 4 Channel Universal Contact Transmitter, Polycarbonate Housing 2 Indicator LEDs

Overview:

Behind the clean, contemporary looks of the 703 lies a highly sophisticated remote transmitter offering a wide variety of applications.

Capable of transmitting signals from up to four locations, it‘s ideal for communicating with a central control point. And whether you need it to monitor lights, doors, pumps, machines, plant or farm machinery or other equipment, you’ll find our 868 MHz narrow-band ensures secure, reliable operation.

Moreover, it can work with vibration sensors to detect attacks on doors, windows, walls and safes. Likewise, by using it with a keyswitch it can act as a simple alarm system.

Powered by either 12vDC or batteries, the 703 can just as easily be used for outbuildings with no electricity as indoor locations.

However you use it though, you can expect the 703 to perform to the highest standards to keep you in control.

Applications:

• Detect and signal the opening or closing of doors or windows
• Detects, analyses & signals the operation of inertia shock sensors
• Signals change of state of relays, transistor outputs and other sensors
• Can be use to remotely monitor lights, doors, pumps and machines
• Can be connected to any normal device that changes state and signal that change remotely
• Plant monitoring
• Farm building monitoring and protection
• Protection of garden sheds and linking back to the house alarm system

Specification:

• Channels: 1,2 or 4 (mode selectable)
• Inputs: 2 x DP or 4 x SP; keyswitch option; entry/exit timer option; inertia sensor analyser option
• Option Programming: Via internal push button switches and display
• Programming Display: Two by seven-segment LED. Visible with case open
• Compliance: Product complies with : EN 50131-3. Security Grade 2. Enviromental grade II
• Radio Section: Operating frequency 868.6625MHz at 20kHz bandwith. CE tested to I-ETS 300 220
• Transmitter Range: Up to 1000m free space
• Supervision Interval: Programmable 4 0r 29 minutes
• Power: 12vDC and/or Quiescent current 15mA
• Battery (optional): 2 x AA 1.5V Alkaline
• Battery Life: 2 years (30 days in Modes 7 & 8)
• Dimensions: 152 x 104 x 30mm (H x W x D)
• Weight: 0.206Kg (not including batteries)
• Compatible Antennae:

• • 792rEUR-00 indoor 1/4 wave (Supplied with 703r)
  • 794rEUR-00 indoor/outdoor co-linear 8 x 1/2 wave
  • 797rEUR-00 indoor/outdoor 1/2 wave
  • Scantronic 762rEUR-00 2 channel receiver
