CAB8HF/WH/100/C, 8C WH Type 1 HF Tin Strand Copper 100m Class C

CAB8HF/WH/100/C, 8C WH Type 1 HF Tin Strand Copper 100m Class C

  • Brand:CQR
  • Product Code:CAB8HF/WH/100/C
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

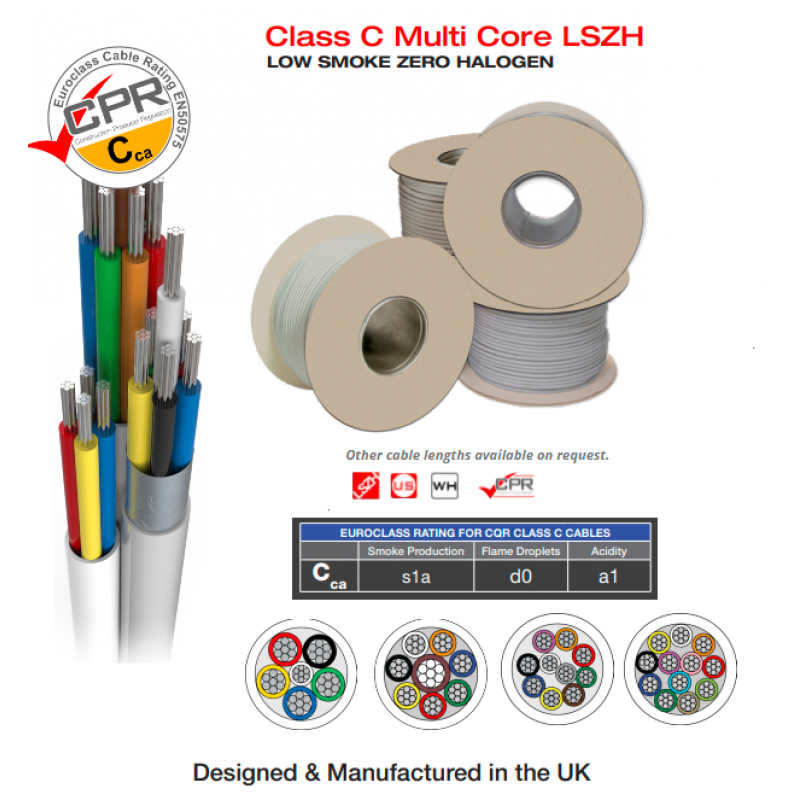

CAB8HF/WH/100/C, 8C WH Type 1 HF Tin Strand Copper 100m Class C

CPR Euroclass C Multi Core LSZH

A cable designed by CQR to meet all aspects of the European Construction Product Regulation (CPR) EN50575.   This cable has been independently tested and certified by an accredited test facility and has been awarded a CPR Euro classification.

CQR offer the Installer, Specifier and End User a quality cabling solution and piece of mind that the product will perform to specification in the event of a fire.

Application
Low Smoke Zero Halogen (LSZH) cable is a requirement where the protection of people and equipment from toxic and corrosive gas is critical.

Construction
• LSZH Class Cca material used for cores & jacket
• 100% Copper
• 6, 8, 10 or 12 Core
• Multi Core

Approvals
All CQR cables are certified and tested to EN50575:2014 – CPR 305/2011 and conform to BS4737-3.30:2015.
Professional cable sheathed in LSZH is Type 1.
Euroclass Cable rating EN50575 Cca,s1a,d0,a1

Specification:

Core: 7 x 0.182mm
Resistance: 94.6 Ohms/Km
AWG: 25
Conductor Area: 0.182mm2
Max Voltage: 50V
Operating Temp: -10oC to 70oC
Sheathing
Low Smoke Zero Halogen Sheath – LSZH Cores – LSZH

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
