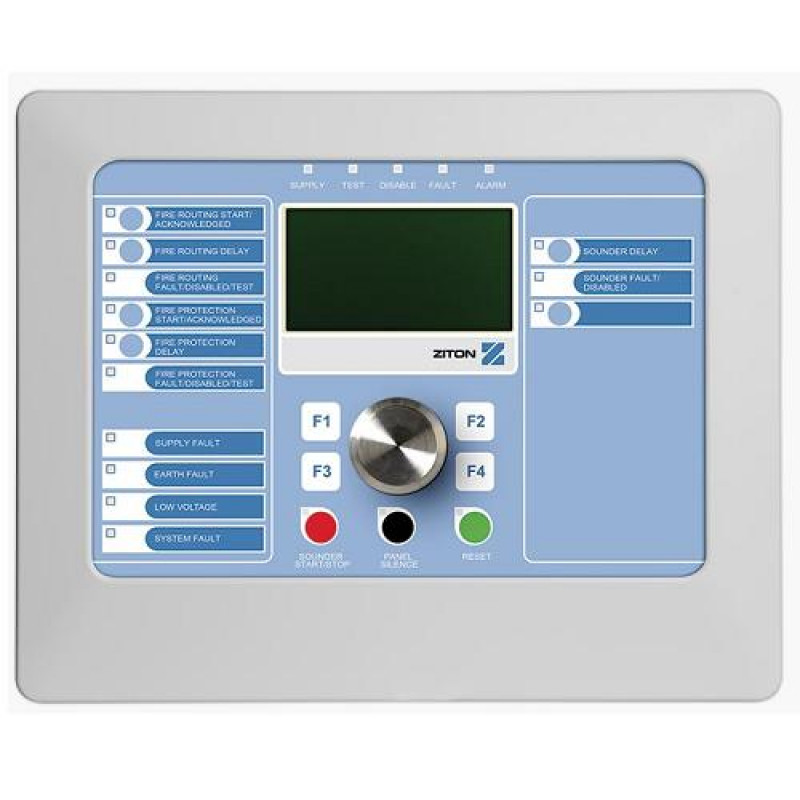

Ziton, ZP2-FR-FB2-C-99, Addressable Fire Panel Repeater W/ Fire Brigade Controls (Compact)

Ziton, ZP2-FR-FB2-C-99, Addressable Fire Panel Repeater W/ Fire Brigade Controls (Compact)

The ZP2 Series life safety control systems are bringing the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. They feature an attractive contemporary design that fits with any decor. Special plastics allows for painting in any color. and the easy to remove electronics will support in this matter. The gently lined door with the intuitive light blue inset user interface and EN54 compliant graphical LCD offers a distinctive flair. The main controls are clearly, but discreetly highlighted with the focus on the central located Jog Dial.

With the addressable detection and a full line of easily configured option cards and modules, USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits building owners and life safety system installers alike.

Key Features:

• Local or global repeater with Fire Brigade and Fire Protection controls with or without global control functionality
• Auto configuration, setup wizards and default EN54 setup modes
• Ethernet port with TCP/IP for remote diagnostics, maintenance and programming
• EN54 compliant graphical LCD with icons and up to 256 zones
• Jog Dail with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with special paintable synthetic door
• Easy removable cover and chassis for quick and clean installation
• All pluggable connectors
• 2 USB ports with memory stick support and RS232 for printer support
• Email notification for events directly from the panel (4 user accounts)
• Redundant 24VDC supply
• 3 operator level menu structure (20 usernames and passwords)
• History log memory for 9999 events
• DIN-rail mounting

Technical Specification:

Supply
Nominal : 24VDC
Minimum : 20VDC
Maximum : 30VDC
Typical current : 190 mA at 24 VDC
Cable type : 2 x 1.5 mm²

Relay outputs
Type : Potential free, NO/NC/C
Maximum output current : 2 A / 30 VDC

Inputs
Programmable : 2
Cable type : Recommended 2 core 1.5 mm² twisted pair
End of Line resistor : 15kohm

Environmental conditions
Storage temperature : -20°C to +50 °C
Operating temperature : -5°C to +40 °C
Relative humidity : max. 95 % (non-condencing)

Mechanical
Size (W x D x H) : 300 x 61 x 240 mm
Weight : 2 kg
Color : RAL9010
Cable entries (Top / Bottom / Back) : 6 / 4 / 6 (20mm)
IP rating : IP30: for indoor use only (DIN rail mounting only)

For more details, please refer with our attached datasheet.
