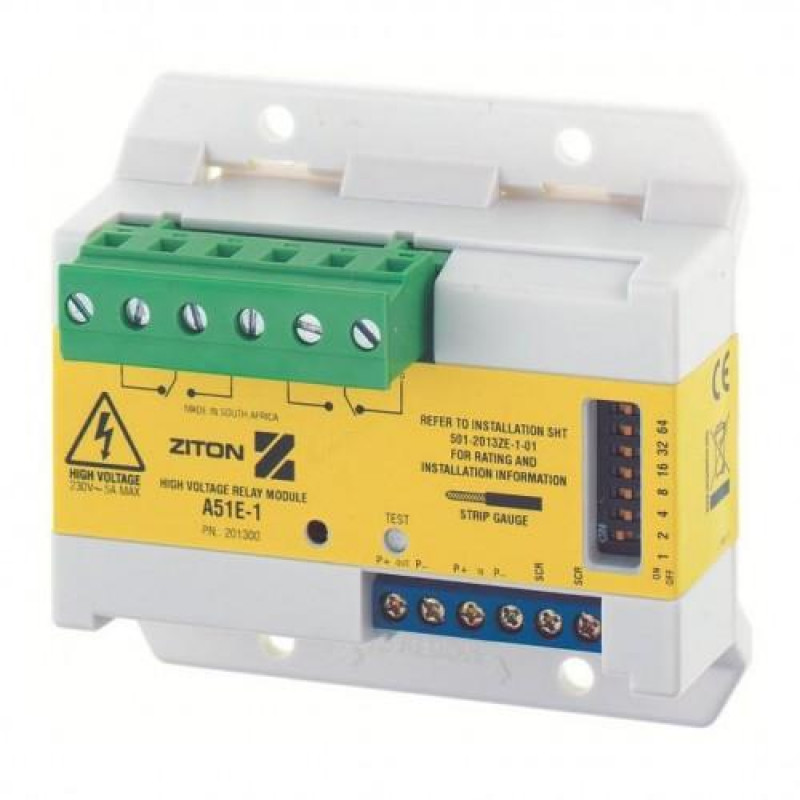

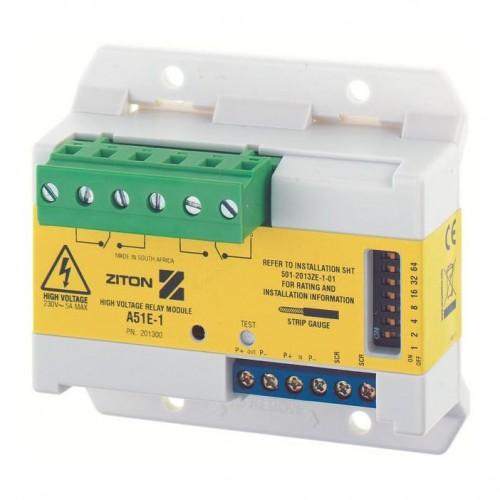

UTC, 201301, A51E-1  A Series Addressable Mains Relay Module

The A51E is an addressable relay providing double pole, volt free, change over contacts, rated to switch local mains supplies. The unit is intended for installation within the equipment to be switched, thereby offering savings in installation costs when compared to long, auxiliary circuit, wiring runs out from the control panel.

Complying with EN54 Part 18, the relay can be located anywhere on the two core ZP loop and is designed for power up or shut down of the mains electrical supply to ancillary equipment The unit is ideal for the control of associated system equipment such as mains fed magnetic door release circuits, extract fans and dampers.

Key Features:

• Addressable mains rated unit
• Complies with EN54 Part 18
• Miniature size
• DIN 35 mounting rail fixing
• Loop wired - adjacent or internal to equipment to be switched
• Operated from any combination of input addresses
• Double pole, volt free change over contacts

Specifications:

• Specification: EN54 Part 18
• Compatability: All ZP analogue addressable panels
• Mounting: Equipment cabinet DIN rail, or SMB-DIN100, SMB-DIN200 surface boxes
• Wiring: Two core loop
• Operating voltage Pulsed ZP loop (19.5 - 20.5V) with max 4 Volt line loss
• Current: Quiescent 600uA, Alarm 700uA
