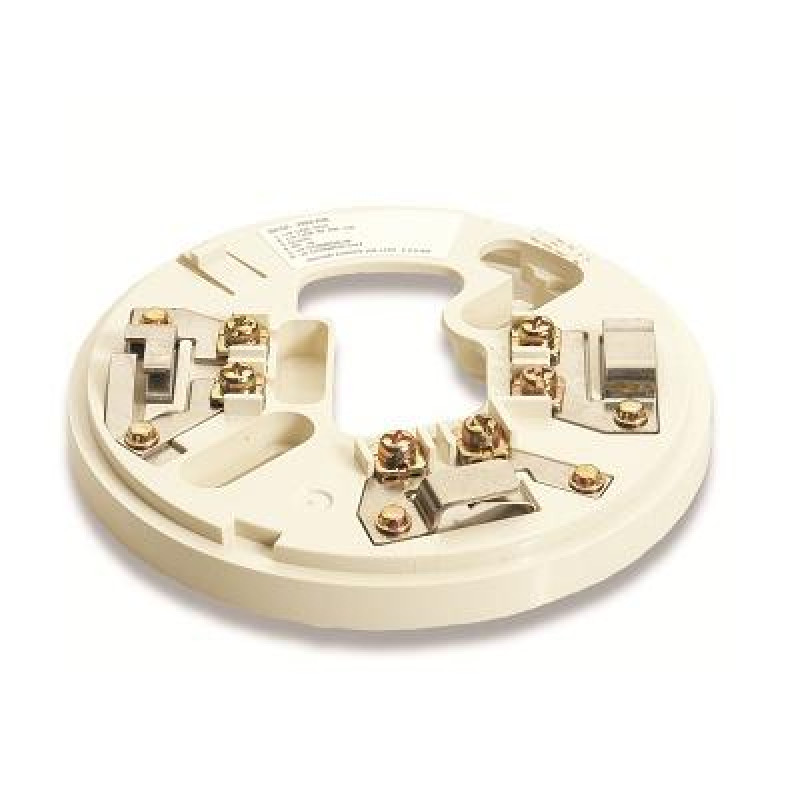

UTC, YBN-R/4IS(WHT), Conventional Detector Mounting Base
- Brand:UTC
- Product Code:YBN-R/4IS(WHT)
- Availability:Please Call or Email Us to Check Availability
UTC, YBN-R/4IS(WHT), Conventional Detector Mounting Base
A Conventional Detector Mounting Base associated with the Hochiki conventional Range of Intrinsically Safe Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.
It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first.
Key Features:
- Low Profile, 8mm
- Rugged Design
- Dedicated Cable Screen Terminal
- Accepts From 1mm to 2.5mm Cable Clamps
- Electronics Free
Specifcations:
- Maximum Humidity: 95%RH - Non Condensing (at 40° C)
- Colour / Material: Ivory White / ABS
- Weight (g) / Diameter (mm) / Height (mm): 51 / 100 / 8
- Fixing Centres (mm): 48 ~ 74
- Maximum Wire Thickness: 2.5mm2 Cable
