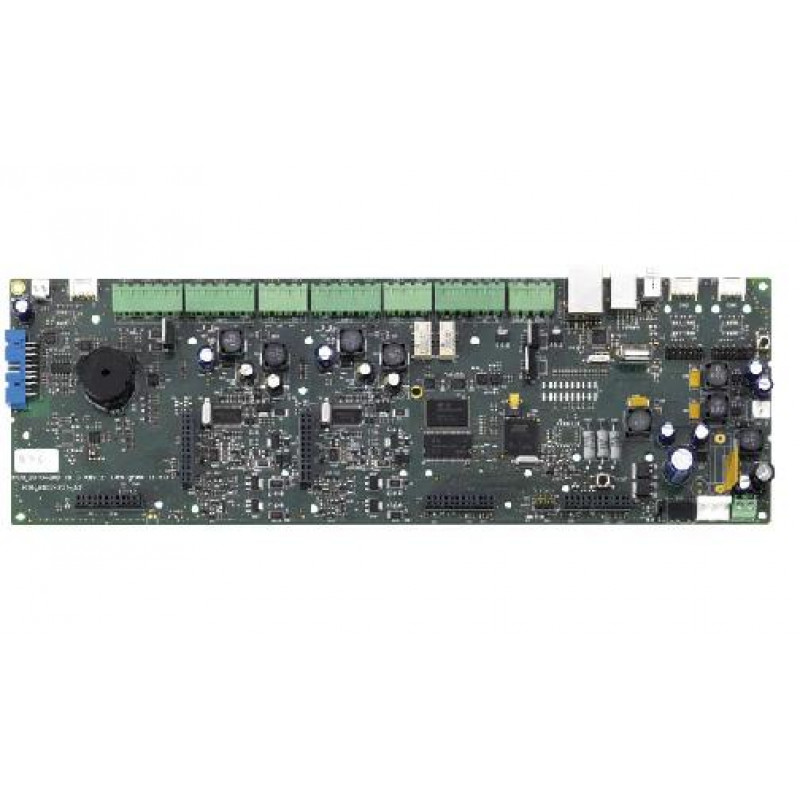

UTC, 2010-2F2-MB - Main Printed Circuit Board - 2 Loop
- Brand:UTC
- Product Code:2010-2F2-MB
- Availability:Please Call or Email Us to Check Availability
UTC, 2010-2F2-MB - Main Printed Circuit Board - 2 Loop
Addressable Fire Panel Component - Main Printed Circuit Board - 2 loop
Key Features:
- 2 ring with up to 128 zones and main detector control unit
- Auto-configuration and regional commissioning mode
- Ethernet port with TCP / IP for remote maintenance and programming
- All Terminals pluggable
- 3 USB ports with memory stick support
- 3 RS232 interfaces
- 24 V DC supply alarm switch with reset function
- VdS approval: G 210005
Technical Specifications:
- Power supply:
- Operating voltage: 230/110 V AC (+10% / -15%)
- Operating Current: Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A
- Frequency: 50/60 Hz (± 5%)
- Backup: 2/4 A
- Cable Type: 3 x 1.5 mm² (line, neutral, earth)
- Outputs:
- Fire Alarm + fault monitors: 2,350 mA / 19.5 to 28 V DC
- Programmable monitored: 2,750 mA / 19.5 to 28 V DC
- AUX: 1 switched, 500 mA / 19.5 to 28 V DC
- Fire Alarm + fault relay: 2
- Terminator AG: 15 kOhm
- Inputs:
- Programmable: 2
- Maximum load: 150mA
- Terminator EC: 15 kOhm
- Cable Characteristics:
- Outputs: 1,250 mA / 29 V DC to 36 V DC
- Cable length: 56ohm / 1uF max. 4 km
- Environmental conditions:
- Storage temperature: -20 ° C to +50 ° C
- Operating temperature: -5 ° C to +40 ° C
- Dimensions: Overall dimensions (W x H): 320 x 110 mm
- Admission:
- VdS Approved: G 211005
