UTC, ATS1155, ATS 4 LED Heavy-duty Keypad (Supplied in Kit)
- Brand:UTC
- Product Code:ATS1155
- Availability:Please Call or Email Us to Check Availability
UTC, ATS1155, ATS 4 LED Heavy-duty Keypad (Supplied in Kit)

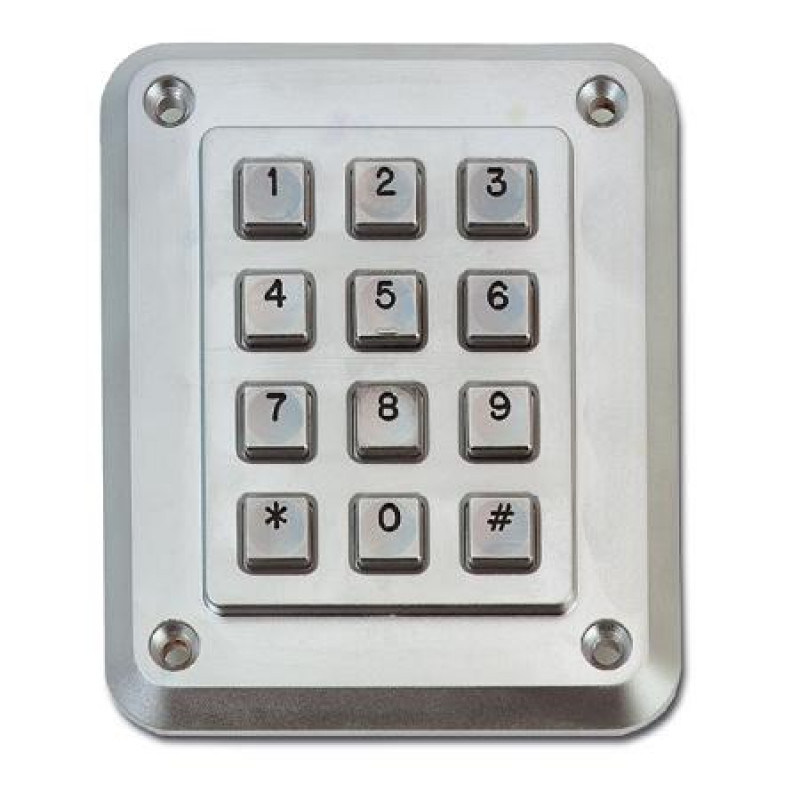

The ATS 1155 is mounted in a steel housing which is designed to resist weather and vandalism and allows you to arm/disarm or open doors. The keys are engraved stainless steel. The product is targeted for an environment where a vandal-proof user interface is needed.
The heavy-duty keypad is flush mounted and the electronics are separated to ensure the maximum resistance against vandalism. The LED indicaters are separately from the keypad, allowing them to be mounted in a secure environment.
Key Features:
- For arming / disarming or access control where code only is requested
- Robust design
- Tamper proof
- Standard Non LCD RAS configuration
- For indoor or outdoor applications
Specifications:
- Supply voltage: 10.5 - 13.8 VDC
- Current consumption: 70 mA max
- Open collector output: 1 (50 mA max)
- Request to exit'' input: Yes
- Max. distance from panel: 1.5 km
- Max. number per panel bus: 16
- Specified cable: Aritech WCAT 52/54 or equivalent
- Data bus monitoring: Continuously monitored for offline condition of all devices on data bus
- Addressing: DIP switches
- IP rating: IP67 (if mounted to suitable enclosure)
- Dimensions (W x H): 75 x 118 mm
- Operating temperature: 0 to +50°C
- Colour: Metallic
