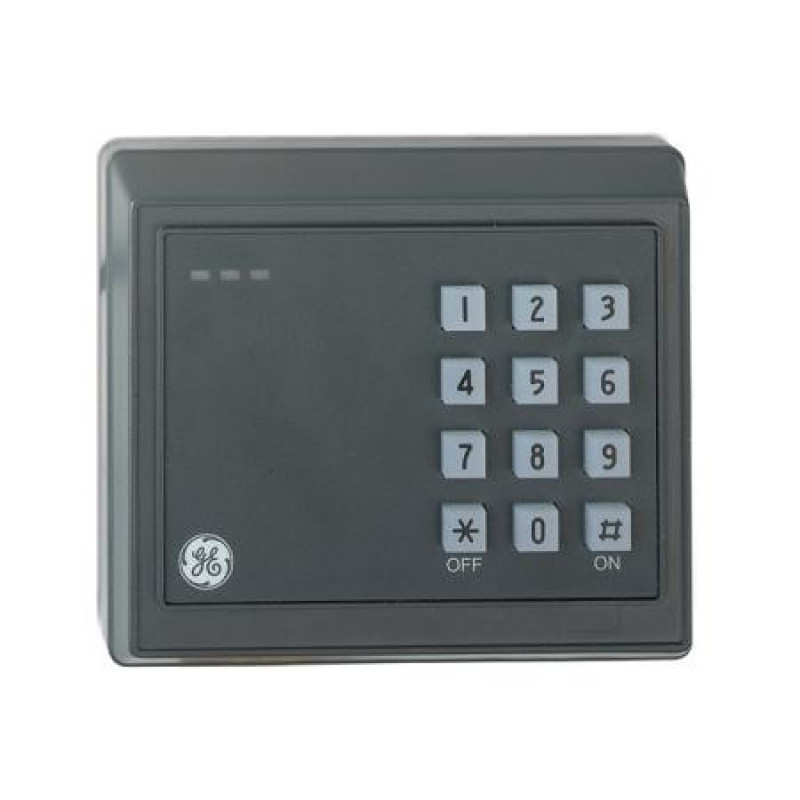

UTC, ATS1197, ATS Smart Card Reader with Keypad
- Brand:UTC
- Product Code:ATS1197
- Availability:Please Call or Email Us to Check Availability
UTC, ATS1197, ATS Smart Card Reader with Keypad
The ATS1197 can be used for arming/disarming areas as well as for access application. It is suitable for using the multiple card badging techniques which are available for the advisor MASTER control panel family. A user could arm the system in the evenings by badging his card three times within 10 seconds interval. Another application could be for doors which can be programmed so that badging once unlocks, badging twice with the same card keeps the door unlocked to allow people in and out without card, and badging three times re-locks the door.
The ATS smart card readers connect directly on the RS485 data bus of the control panel or 4 Door Controller and may be configured and addressed via a LCD keypad. Some security options (Site code & 4-byte security code) are only programmable via TITAN and configuration cards. Mainly used for outdoor applications in high security sites where needs to be used a combination of a card and PIN for access.
Key Features:
- Full epoxy filled weather proof construction
- Keypad
For more details, please refer with our attached datasheet.
