Bell, VRK10-S, 10 Station Vandal Resistant System (Surface)

Bell, VRK10-S, 10 Station Vandal Resistant System (Surface)

The Bell VRK10-S 10-station vandal resistant flush door entry systems have been devised for buildings that are prone to external vandalism.

Each system provides all of the components necessary to install a complete audio door entry system; including a flush lock release as standard.

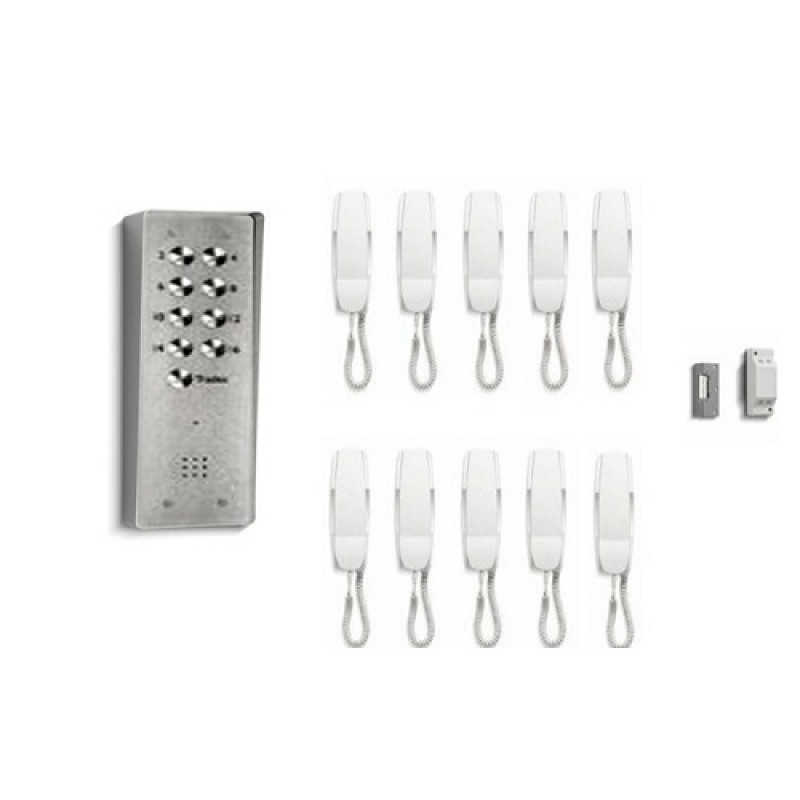

Each VRK series system comprises:

• Model 801 Telephone, One Each Station.
• Model VRP Front Door Panel.(10 Buttons)
• Model 61 Speech Unit (Model 51 above 10 Ways).
• Model 203 Lock Release.
• Model 212 12V AC PSU

1) Standard Wall Mounted Door Entry Telephone [212mm x 85mm x 55mm (H x W x D)]

The model 801 is Bell Systems’ original door entry telephone. It has been re-styled a number of times over the years and still maintains its classic design. The 801 telephone continues to be the most popular in the UK market owing to its exceptional reliability and economical price.

The model 801 telephone operates from both12v AC or 12v DC and is included in the standard model 900 and VRK audio door entry systems as well as the CS and CSP series of combined keypad and proximity door entry systems.

• Standard version, mute switch & privacy of speech versions available
• Operates from both 12v AC or 12v DC

2) Speech Unit Model 61

This compact unit is fitted to the entrance panel on all our current door entry systems(except as indicated below). The unit provides two-way speech and has an individual volume control for both microphone and speaker. This universal product can be powered from either 12V AC or 12V DC depending on the model of telephone used.

Dimensions: H = 97mm, W = 58mm, D = 24mm

3) Model 212 (12v AC)

A wall-mounting, double insulated, fused transformer included in basic audio door entry systems up to 10 stations. It has a nominal output of 12v AC @ 1Amp. Compliant with EN60950.

 Dimensions: H = 140mm, W = 60mm, D = 53mm

A Surface lock release as standardand the model 203 Rim Lock Release is recommended.
