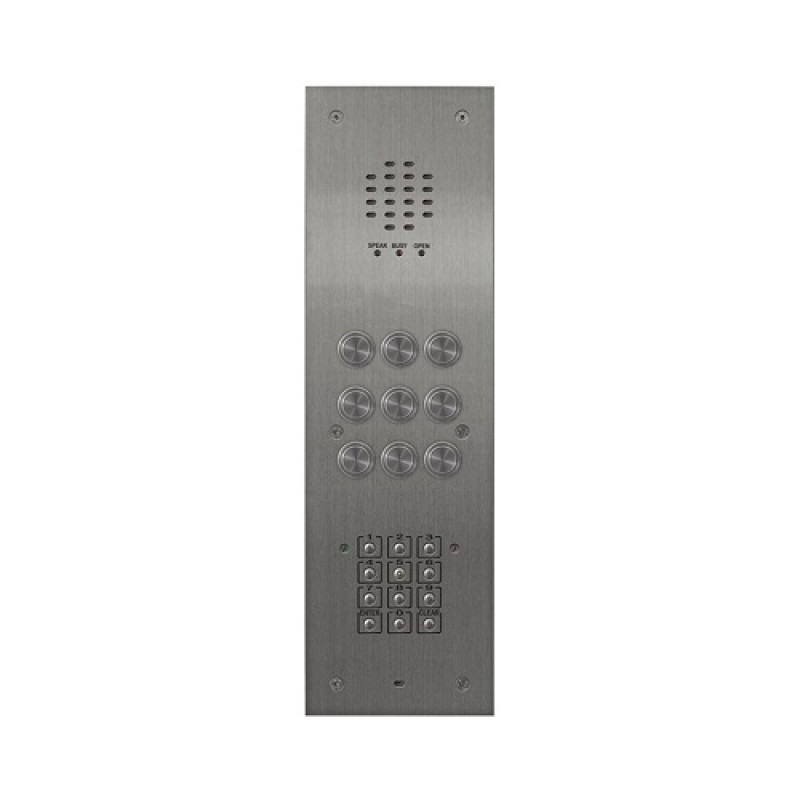

Videx, Videx, VR120/136-9/CL, 9 Button, 136 Amplifier VR120 Flush Panel with CL

Videx, VR120/136-9/CL, 9 Button, 136 Amplifier VR120 Flush Panel with CL

The VR120 door panels (all 120mm wide) have CALL PROGRESS LEDs for “SPEAK”, “DOOR OPEN” and “BUSY,” along with distinct audio reassurance tones to assist the visitor. Buttons are IP68 rated with the option of a yellow bezel offering a high contrast to the fascia for DDA (Disability Discrimination Act) requirements.

All face plates are deep engraved with 6mm in-filled black characters to identify each button. Optional colours for specific applications can be specified along with custom logos.
The VR120 face plates are attached to their back box with either 4 or 6 anti-vandal fixings, depending on panel size and options. All face plates are fitted with a purpose manufactured neoprene seal to prevent the ingress of dust and liquid. Audio amplifiers and microphones are protected with a fine offset stainless steel mesh to protect against vandalism.

All speakers have Mylar cones to further protect against the effects of moisture. Full control of volume levels to the amplifier and the telephones can be adjusted independently at the amplifier module, as can additional features including speech time, lock release time, reassurance volume etc.
A codelock is included featuring 12 stainless steel buttons, 2 LEDs for progress information, 2 relay outputs and 2 user codes.

Flush boxes are standard. Stainless steel bezel flush boxes and surface with rain shield are also available across the range. Panels and back boxes can also be designed to specific dimensions.

Key Features:

• 12 Gauge stainless steel
• IP68 rated buttons with optional yellow bezel
• SPEAK, BUSY & OPEN call progress LED’s
• Call progress reassurance tones
• Dry contact lock output
• Timed call, speech and lock release
• Speaker and microphone volume adjustments
• Coded keypad with 2 codes and 2 relay outputs

Technical Specification:

• Material: 12 Gauge stainless steel (316)
• Fixings: M5 counter sunk stainless steel
• Speak and mic protection: Offset stainless steel mesh
• Panel width: 120mm (w)
• Panel height: 1-3 button – 280mm (h) / 4-12 button 400mm (h)
• LED’s Red-Busy, Yellow-Speak, Green-Door open
• Reasurance tones: Yes
• Standard box: Flush mounting 50mm deep
• Optional boxes: Surface with rainshield and flush with stainless steel bezel
• System: VX2200 2 wire audio, 6 wire video system (Also available for other systems)
• Codelock: 2 code, 2 relay (1-99 seconds or latch – dry contact NO & NC)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
