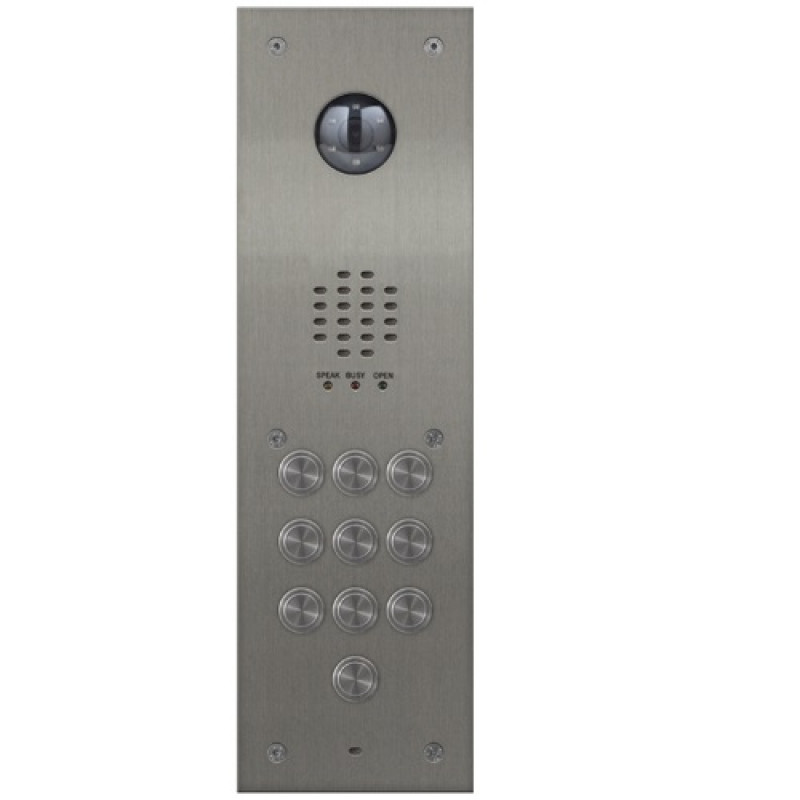

Videx, VR120/136-10/V, 10 Button VR120 Flush Video Panel with 136 amp

Videx, VR120/136-10/V, 10 Button VR120 Flush Video Panel with 136 amp

The VR120 door panels (all 120mm wide) have CALL PROGRESS LEDs for “SPEAK”, “DOOR OPEN” and “BUSY,” along with distinct audio reassurance tones to assist the visitor. Buttons are IP68 rated with the option of a yellow bezel offering a high contrast to the fascia for DDA (Disability Discrimination Act) requirements.

All face plates are deep engraved with 6mm in-filled black characters to identify each button. Optional colours for specific applications can be specified along with custom logos.

The VR120 face plates are attached to their back box with either 4 or 6 anti-vandal fixings, depending on panel size and options. All face plates are fitted with a purpose manufactured neoprene seal to prevent the ingress of dust and liquid. Audio amplifiers and microphones are protected with a fine offset stainless steel mesh to protect against vandalism.

All speakers have Mylar cones to further protect against the effects of moisture. Full control of volume levels to the amplifier and the telephones can be adjusted independently at the amplifier module, as can additional features including speech time, lock release time, reassurance volume etc.

The addition of a wide angle colour day/night (Automatically switches to mono when the light level falls to low) camera with IR illumination LED’s and protected behind a strengthened polycarbonate window. The output of the camera can be set as 1V p-p for coax or a balanced signal for use on twisted pair cable.

Flush boxes are standard. Stainless steel bezel flush boxes and surface with rain shield are also available across the range. Panels and back boxes can also be designed to specific dimensions.

Key Features:

• 12 Gauge stainless steel
• IP68 rated buttons with optional yellow bezel
• SPEAK, BUSY & OPEN call progress LED’s
• Call progress reassurance tones
• Dry contact lock output
• Timed call, speech and lock release
• Speaker and microphone volume adjustments
• Colour CCD wide angle camera

Technical Specifications:

• Material: 12 Gauge stainless steel (316)
• Fixings: M5 counter sunk stainless steel
• Speak and mic protection: Offset stainless steel mesh
• Panel width: 120mm (w)
• Panel height: 1-3 button – 280mm (h) / 4-12 button 400mm (h)
• LED’s Red-Busy, Yellow-Speak, Green-Door open
• Reasurance tones: Yes
• Standard box: Flush mounting 50mm deep
• Optional boxes: Surface with rainshield and flush with stainless steel bezel
• System: VX2200 2 wire audio, 6 wire video system (Also available for other systems)
• Camera: Colour CCD, Infrared illumination, wide angle (170 degrees)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
