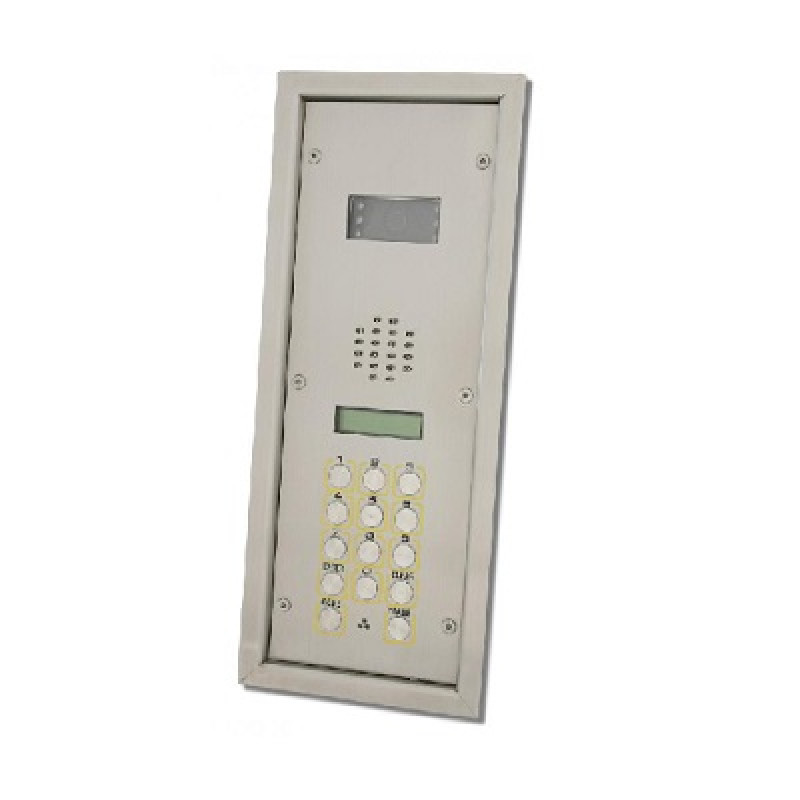

Videx, SP301-1C, 2202VS Flush Vandal Resistant Colour Video Digital Door Panel with Display for VX2200 Systems

SP301-1C, Videx, 2202VS Flush Vandal Resistant Colour Video Digital Door Panel with Display for VX2200 Systems

Vandal resistant video digital panel c/w color camera with IR LED's. The VX2200 audio system is based on a 2 wire BUS for audio systems and a 6 wire BUS for video systems. The digital front panels are available in several versions including the 8000 series design (With either alphanumeric A-H feature or Name scroll feature), 4000 series design (With either alphanumeric A-F feature or Name scroll feature) and vandal resistant with optional alpha buttons A-H. All digital panels have the facility to call up to 998 users (when using 2206N bus exchange devices, 180 per block/bus). Digital panels also benefit from each user having the additional feature of a personal access code to gain access to the building. Functional panels are also available with up to 64 buttons. All intercom telephones are addressed by means of an 8 way dip-switch located within each handset.

Specifications:

• Material: 12 Gauge (2.5mm) 304 grade vertically brushed stainless steel
• Panel dimensions: 140mm x 400mm
• Bezel outer dimensions: 179mm 439mm
• Back box dimensions: 143mm x 403mm x 80mm
• Voice annunciation: Yes
• Max number of apartments: 998
• Number of buttons: 0-9. Enter, Clear, Code, Trade
• Lock output: Dry contact (C, NO & NC) timed (Programmable)
• Power: 12Vdc & 20Vdc
• Systems: VX2200
• Push to exit input: Yes
• Call reassurance tones: Yes
• Coded Access: Yes (Up to 1000 codes up to 6 digits each)
• Call progress information: 2 Line back lit LCD display and voice annunciation
• Programming: Keypad/display and PC
• Camera angle adjust: 10 degrees ball joint
• camera Input voltage: 20Vdc
• Output: Balanced or 1Vp-p video (Selectable)
• Anti-mist system: Yes
