Videx, VRPH, Add proximity Reader Cut Out (No reader)

Videx, VRPH, Add proximity Reader Cut Out (No reader)

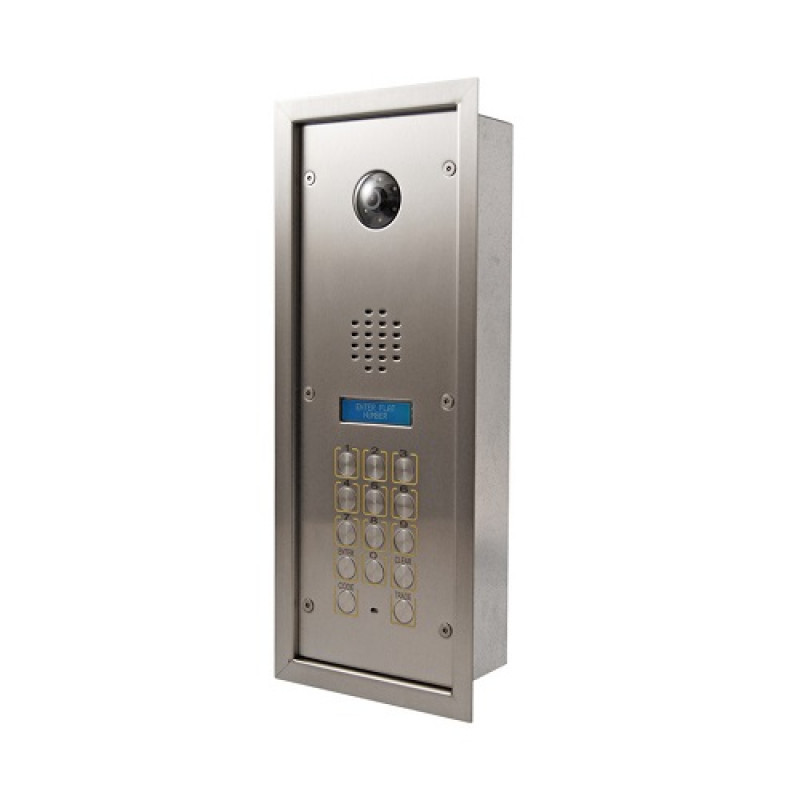

The SP301 series colour video door entry panels are primarily used on larger systems with more than 20 apartments or offices. Incorporating a standard numeric style keypad, a caller simply types in the apartment number to call. Both audible and visual instructions are given throguhout the progress of the call by way of instructions on the back-lit LCD display and spoken messages through the speaker.

Systems with up to 998 apartments, up to 10 main entrances, 15 blocks each with 10 entrances can easily be created using a BUS cabling system.

The numeric keypad incorporates numbering with yellow contrast rings to each button for the visually impaired. The keypad can further be expanded with alpha keys from A through to L if required, or scroll buttons enabling name searching.

The 12 gauge stainless steel panels are available with a flush stainless steel bezel backbox as standard. An optional surface box with rainshield is also available. Panels incorporate a 998 coded access facility allowing each tenant to have a unique 4-6 digit code. Optionally a proximity reader cut out (VRPH) or proximity reader (VRVP, VRPP or VRMI) can be incorporated to the digital panel as can an induction coil (VRIND) along with other options.

In addition the digital panel includes a colour CCD wide angle day/night camera with IR illumination LEDs that provide the best quality picture in any lighting condition with a viewing angle of 170°. The camera can be set to work with either composite video (coax) or balanced video (non-coax twisted pair) and is protected behind a strengthened polycarbonate window.

Key Features:

• 12 Gauge stainless steel
• Back-lit LCD Display
• Voice annunciation call progress
• Tactile Keypad with Yellow Contrast
• Up to 998 apartments
• BUS cabling system
• Serial RS232 jack plug connection for PC programming
• Colour CCD wide angle day/night camera with IR illumination (170° viewing angle)

Technical Specification:

• System: VX2200 digital
• Material: 12 Gauge (2.5mm) 316 grade vertically brushed stainless steel
• Panel Dimensions: 140mm x 400mm
• Bezel Outer Dimensions: 179mm 439mm
• Back Box Dimensions: 143mm x 403mm x 80mm
• Voice Annunciation: Yes
• Max number of Apartments: 998
• Number of Buttons: 14 (0 – 9, Enter, Clear, Code and Trade standard)
• Lock Output: Dry contact relay (C, NO & NC) timed (Programmable)
• Power Input: 12Vdc
• Push to Exit Input: Yes
• Call Reassurance Tones: Yes
• Coded Access: Yes (up to 1000 codes 3 – 6 digits each)
• Call Progress Information: Yes (2 Line back-lit LCD display and Voice Annunciation)
• Programming: Via keypad and/or PC programming software (SP37)
• Camera: Wide angle CCD colour camera (170°) with LED illumination
• Working temperature: -10°C to + 50°C

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
