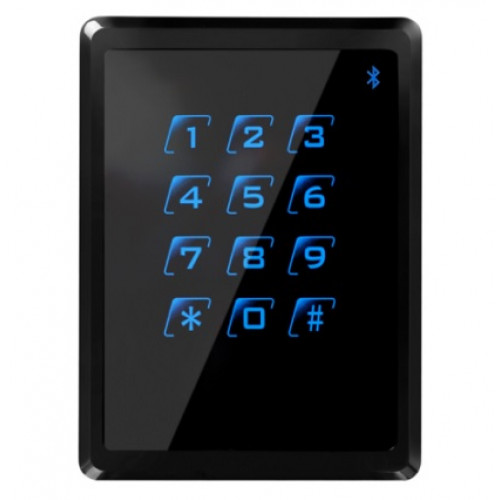

BLUE-B, Bluetooth Reader, Wiegand,Keypad

BLUE-B, Bluetooth Reader, Wiegand,Keypad

Vanderbilt’s range of Bluetooth Readers is a secure and flexible identification solution bringing the access credential to Android and iOS smartphones. Bluetooth Low Energy (BLE) is transforming the future of access control and removes the need for a physical card or tag. Simultaneous support of smartphones and a wide range of smart cards bridges the gap from traditional access credentials to cardless mobile access control and allows a seamless integration into existing locations. Available communication interfaces: • BLUE-A: Wiegand • BLUE-B: Wiegand (with keypad) • BLUE-C: OSDP • BLUE-D: OSDP (with keypad).

Key Features:

• Wiegand and RS485 reader interface
• Compatible with MIFARE Ultralight®, MIFARE® Classic, MIFARE Plus®, MIFARE®
• DESFire® EV1, EV2
• Compatible systems: ACT Enterprise
• FREE end-user app for Android™ and iOS™
• IP65 water-resistant with waterproof electronics.

Specifications:

• Operating temperature: - 30°C to + 70°C
• Card compatibility: MIFARE Ultralight®, MIFARE® Classic, MIFARE Plus®, MIFARE® DESFire® EV1, EV2
• Dimensions (L x W x H): 115.5mm x 84.5mm x 20.5mm
• Frequency: 13.56 MHz, ISO14443 types A & B, 2.4 GHz Bluetooth® (Low Energy)
• Housing material: PC, ABS
• Housing protection: IP65 level – water-resistant with waterproof electronics
• LED Indicators: 3 RGB LEDs
• Power consumption: 160mA (max.)
• Buzzer: Internal audio indicator
• Power supply: 9VDC to 15VDC
• Tamper protection: Hall effect switch
• Card read distance: MIFARE Classic: 3cm-5cm ( read UID/private ID); DESFire EV1, EV2: 1.5cm-4cm (read UID/private ID)
• Keypad: Capacitive touch keypad
• Cable length: max. 150m
• Approval: Bluetooth SIG, CE, RoHS, REACH and FCC
• Interface to controller: Wiegand
• Installation: Indoor / outdoor.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
