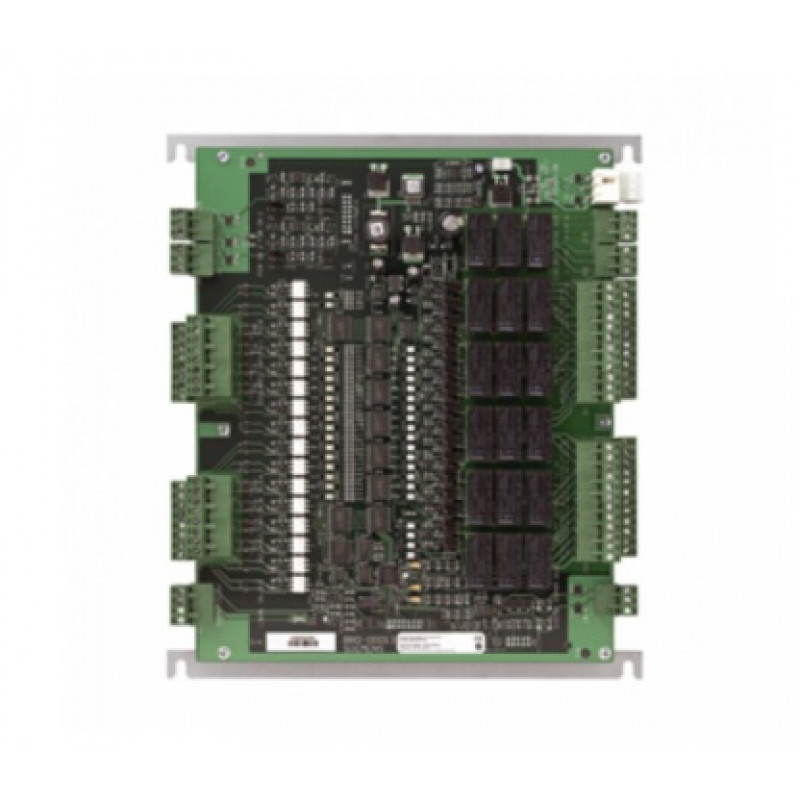

AFO5100, Output Module

AFO5100, Output Module

The AFO5100 is an advanced‚ multi-purpose module that provides an interface between powered field-level input contact devices (such as elevator buttons) and output devices (such as override mechanisms) to the advanced central controller (AC5100‚ AC5102 or AC5200). It is designed for use in elevators that are integrated within an access control environment. A single AFO5100 can provide access control for up to 16 floors and multiple AFO5100 modules can be combined in an elevator system to provide access control for all floors. The fire override mechanism allows floors to be made automatically accessible during an emergency situation‚ a critical feature for sites where legislation requires strict emergency responses.

Key Features:

• High performance input/output controller
• Provides up to 16 inputs and 16 outputs
• Acts as an interface module in an elevator access control system.

Specifications:

• Outputs: 16 x Relays (30 VDC‚ 2 A) 1 x Tamper (open-collector 12 VDC‚ 100 mA) 2 x Fire override relays (30 VDC‚ 2 A)
• Inputs: 16 x Isolated (unsupervised external voltage required) 1 x Tamper (internally supplied) 2 x Fire override (potential-free or internally supplied)
• Indicators: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
• Power consumption: 50 W
• Operating voltage: 12 VDC ±10% or 24 VDC ±10%
• Interface: To controller: RS485
• Interfaces: Al controllore: RS485
• Operating temperature: 0 to +50 °C
• Approval: CE‚ UL294‚ C-Tick
• Firmware: Flash upgradeable.

For more details, please refer with our attached datasheet.
