Videx, CVR4KV-3/CL, 3 Way Flush Colour Video Kit with Codelock

Videx, CVR4KV-3/CL, 3 Way Flush Colour Video Kit with Codelock

  • Brand:Videx
  • Product Code:CVR4KV-3/CL
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

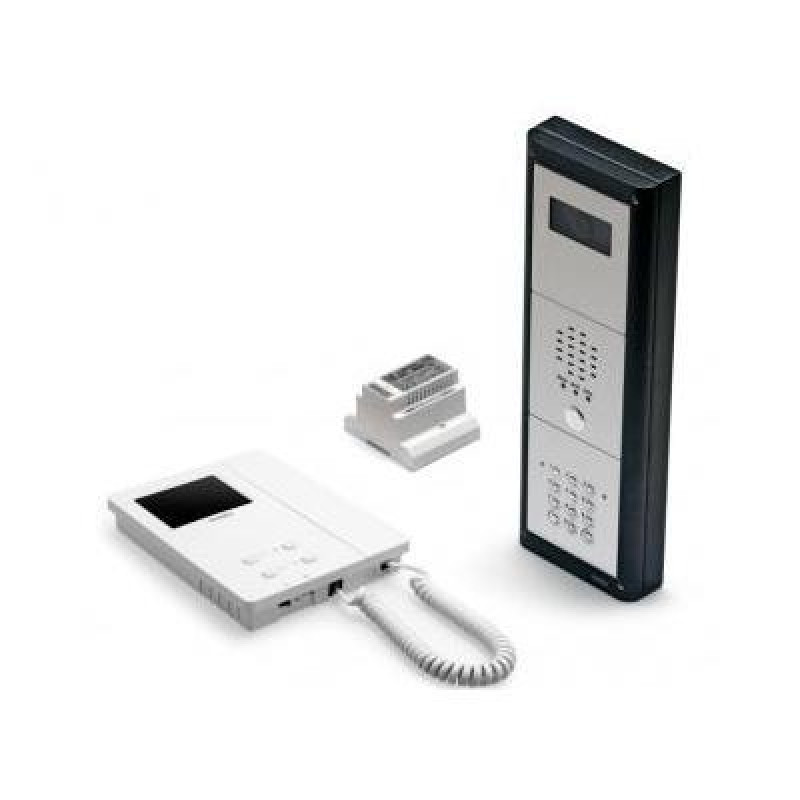

Videx, CVR4KV-3/CL, 3 Way Flush Colour Video Kit with Codelock

3 Way 4000 series colour video kits with codelock. The flexible design allows for the addition of up to a total of 4 entrance doors and up to 4 video handsets per call button with intercommunication between the handsets.

Other facilities include adjustable call tone and time, camera recall (selectable), timed mute facility with led indication. Door panels have adjustable reassurance tone and call progress led's for calling, speak, door open and system busy. The system does not require coaxial cable.

Available in surface (/S) or flush. Panel facia is 12 gauge 304 grade stainless steel while the frame is made from die cast alloy finished in gun metal grey.

Specifications:

  • Number of entrances - 1 (Expandable to 4)
  • No. Of cores to videophone - 6 from panel, 2 from PSU
  • PSU - 24Vac
  • Recommended cable type - CW1308
  • Lock output - 12Vdc or dry contact
  • Codes - 2 code, 2 relay
  • Code length - 4 - 8 digits
  • Videophone model - 6256
  • PSU model - 850K
  • Amplifier module - VR4KAMK
  • Camera module - VR4KCMC
  • Codelock module - 4800
