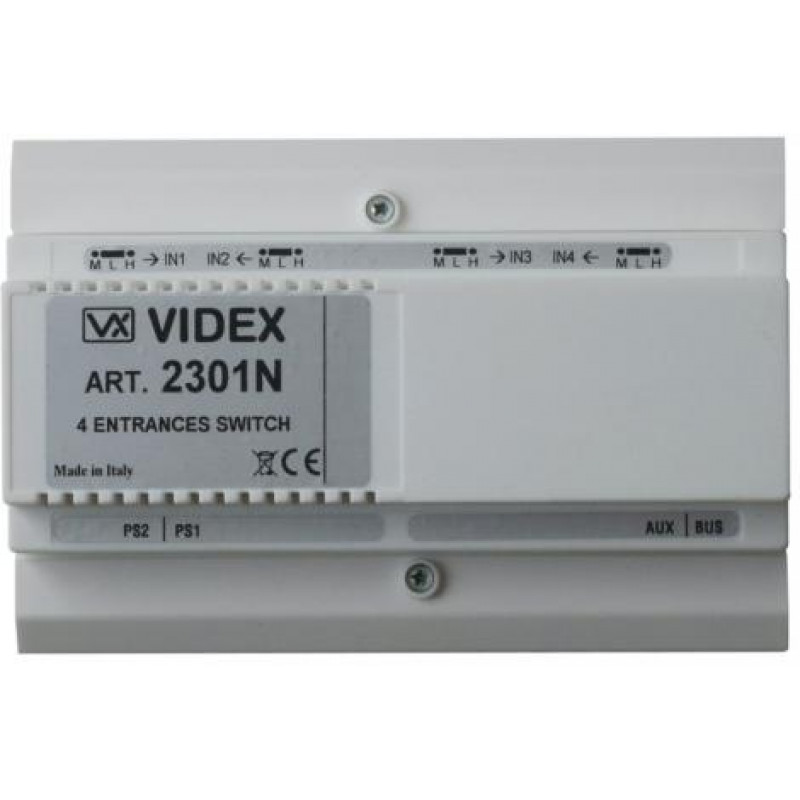

Videx, 2301N, Two - Four Entrance Exchange Unit - Multiple Door Switcher for VX2300 System

2301N, Videx, Two - Four Entrance Exchange Unit - Multiple Door Switcher for VX2300 System

This unit allows additional entrances to be added to a VX2300 system. Up to four entrances can be added to each 2301N. Two 2301N's can be linked together to allow for a system with up to 8 entrances. Supplied in a white ABS plastic DIM/wall mount box.

2301N is the replacement for the Art.2301/4 and 2301/8 entrance exchange units. The Art.2301N will control
4 entrances (up to 8 entrances if 2 x Art.2301N’s are used). Each entrance can have its own video signal level set to cater for varying distances, the unit is housed in a 9 module DIN A type box and can be surface or DIN rail mounted.

Specifications:

• No of entrances: 4
• Dimensions: 157.5mm(L) x 105mm(W) x 65mm(D)
• Material: Plastic
• Mounting: Wall or DIN (9 modules A type DIN)

For more details, please refer with our attached datasheet.
