Videx, 2214, Event Logger and Remote Relay for VX2200 High Security Requirments

Videx, 2214, Event Logger and Remote Relay for VX2200 High Security Requirments

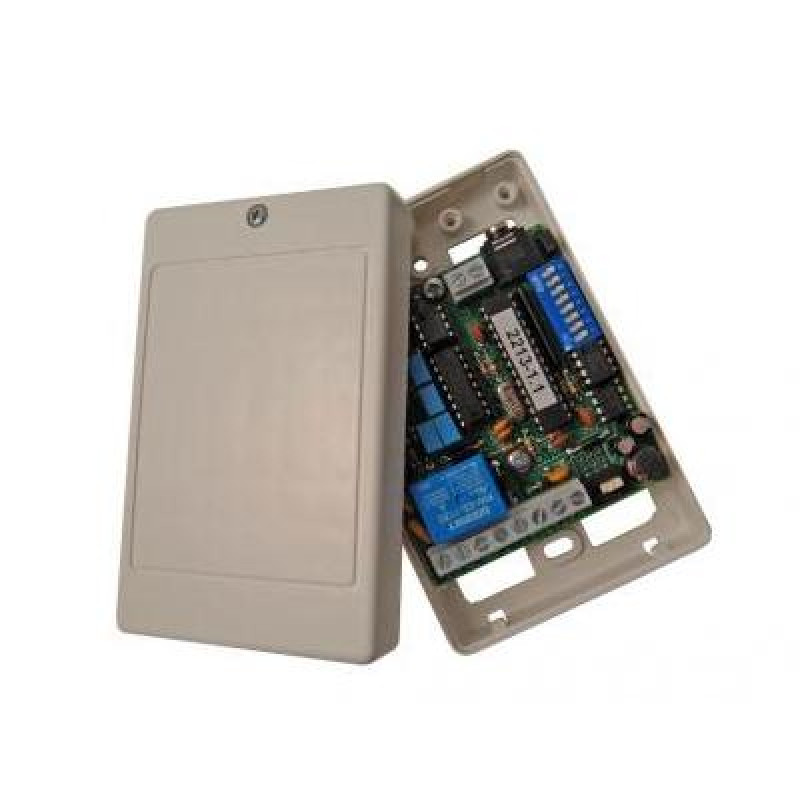

Event logger bus interface unit complete with PC software, RS232 cable and USB to RS232/RS485 convertor.

Designed to work in conjunction with the VX2200 low, medium and high rise intercom system which has successfully achieved STS202 BR2 level of Burglary Resistance, the event logger addition will help improve security while assisting in the combat against anti-social behaviour.

Easily incorporated in to new or existing systems, low voltage 12Vdc power supply normally already available on the system.  Up to 4000 events will be logged while off line, when on line connected to a PV via either RS232, RS485 or USB the events are unlimited.

The easy to use PC software allows events to be viewed in real-time or downloaded from a device which has been off line.  All events are stored in a database which can then be searched for a particular criteria and either printed or exported to Excel.  Individual log-in user name and passwords can be setup for each user with the option to offer administrator privileges.

An additional feature of the software is 'Caller display'.  This feature can be used in communal living environments where tenants spend a large portion of their day in a room.  A caller display monitor can be mounted in the day room to inform tenants when they have visitors.

Specifications:

• Dimensions: 110mm (L) x 70mm (W) x 30mm (D)
• Supply voltage: 12-14Vdc
• Current max. 45mA
• PC Requirements: Windows XP Service pack 3 or later, DotNet framework 4 or later, CD drive (For installation  only), USB, RS232, RS485 port.
