Videx, 2380, Telephone Interface Unit for 380N

2380, VIDEX, TELEPHONE INTERFACE UNIT for 380N

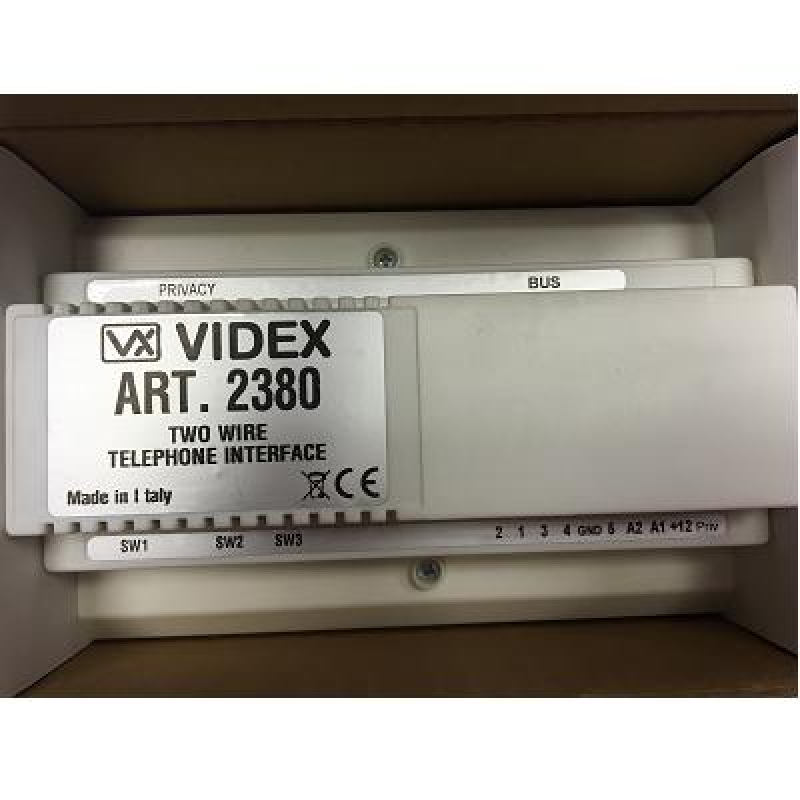

Art. 2380 allows to connect Art. 380 and Art. 275/2W interfaces to VX2300 digital system. Also, these interfaces you can use a normal telephone ( land line telephone or laptop ) as an intercom. The unit is housed in a 9 modules DIN A type plastic box , and it can be surface or DIN bar mounted.

The 380 unit is a self contained telephone interface module for use on an analogue telephone line. Its primary function is to enable a user to communicate with a telephone line and a door entry point (or points) from the same telephone handset. This handset can be a standard corded model, a cordless such as a DECT telephone or even a hands free telephone. The 380's main features are listed below:-o Communicate with both a telephone line and door entry points. o Open a door using the telephone keypad. o Open the speech to a door entry point without first being called. o Activate up to two auxiliary outputs. (Outputs can be either momentary or latching).o Reverse the door open relay for use with power to lock releases. Call times, speech times and diverts can also be set up.

Specifications:

• Input voltage: 230Vac
• Max REN output: 2
• Output aux voltage: 12Vdc (200mA max)
• Intercom interface: 4+1
• Programming: Via telephone keypad
• Dimensions: 157.5mm x 105mm x 65mm (9 module DIN)
