Videx, 380N, Door Entry Point and Telephone Interface

380N, Videx, Door Entry Point and Telephone Interface

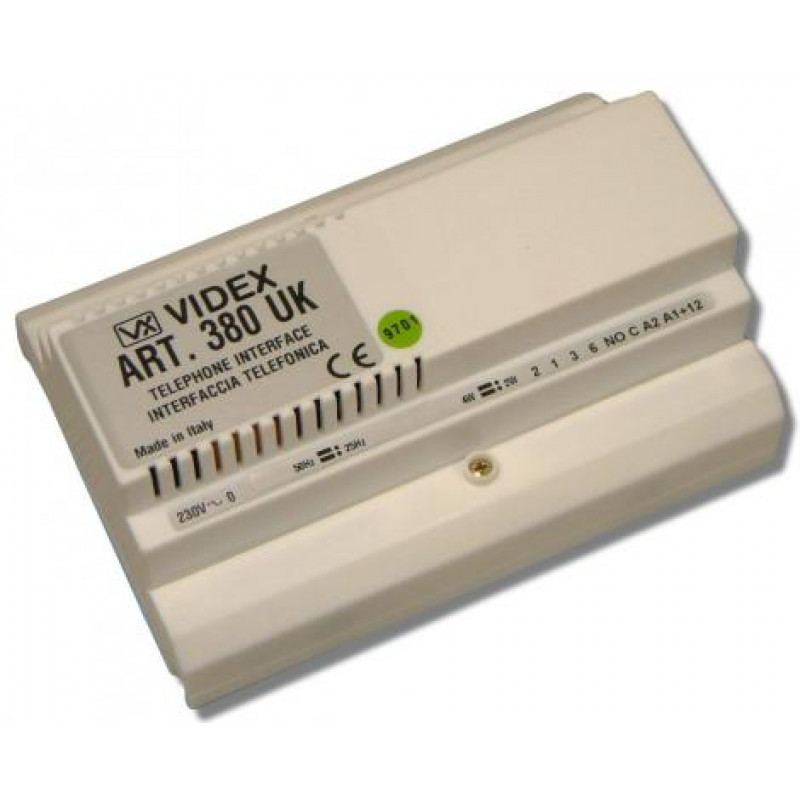

The 380 unit is a self contained telephone interface module for use on an analogue telephone line. Its primary function is to enable a user to communicate with a telephone line and a door entry point (or points) from the same telephone handset. This handset can be a standard corded model, a cordless such as a DECT telephone or even a hands free telephone.

The 380's main features are listed below:-

• Communicate with both a telephone line and door entry points.
• Open a door using the telephone keypad.
• Open the speech to a door entry point without first being called.
• Activate up to two auxiliary outputs. (Outputs can be either momentary or latching).
• Reverse the door open relay for use with power to lock releases. Call times, speech times and diverts can also be set up

Specifications:

• Supply voltage: 230V AC
• Max number of telephone: 2
• Enclosure material: ABS plastic
• Dimensions: 157.5mm(L) x 105mm(W) x 65mm(H) [Standard 9 module DIN box]
