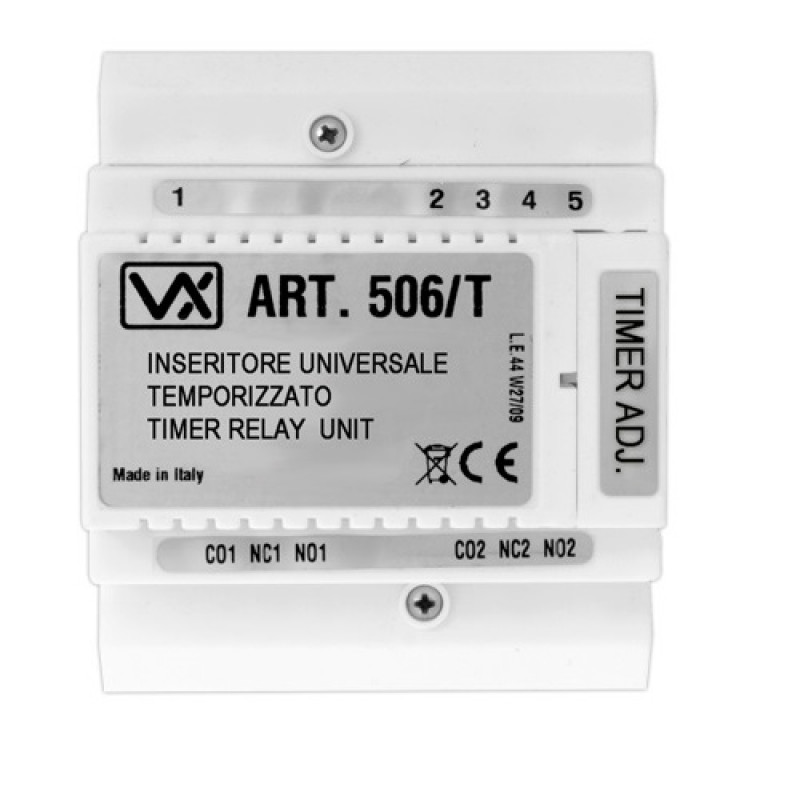

Videx, 506/T, Boxed Relay 12/24V with Timer (23G/T)

Videx, 506/T, Boxed Relay 12/24V with Timer (23G/T)

Boxed 12/24v ac/dc relay outputs are 2 x single pole changeover rated at 240v 5 amps. It also includes a low current transistor input positive on negative switched. The relay can be timed via a potentiometer between 2 and 100 seconds. This is a universal relay with which can be used for many applications and in many environments.

Boxed and unboxed universal relays also available with timed output

Technical Specification:

• Input – 12-24Vac or dc
• Output – Double pole change over relay (C, NO NC contacts 220Vac 5A max.)
• Dimensions – 87.5mm(L) x 105mm(W) x 65mm(D)
• Material – Plastic
• Mounting – Wall or DIN (5 modules A type DIN)
• Timer – Adjustable from 1-100 seconds (506T only)
