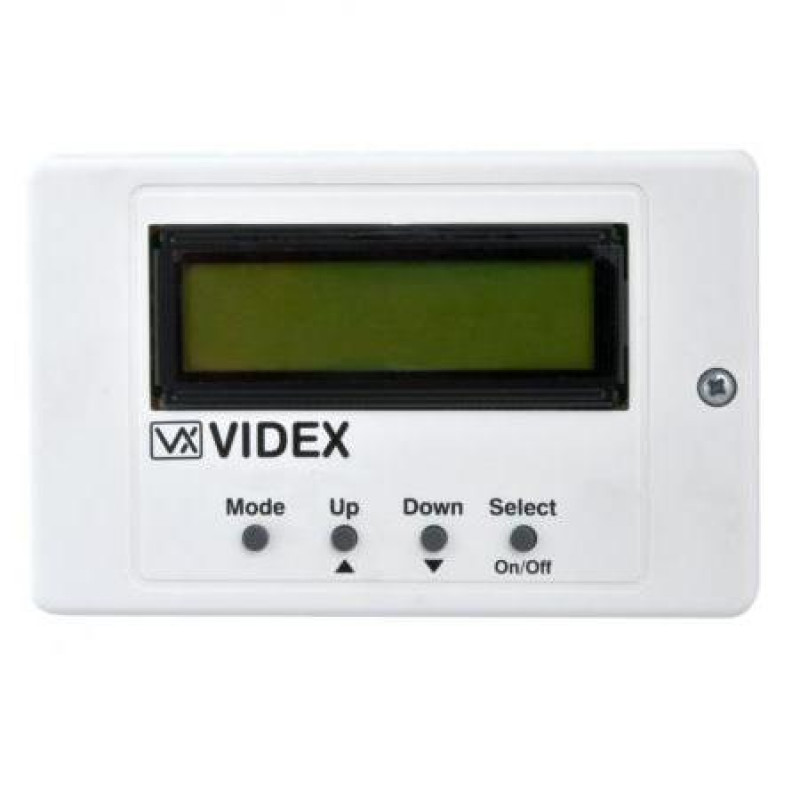

Videx, 701T/24, BST/GMT 24V Digital Time Clock
- Brand:Videx
- Product Code:701T/24
- Availability:Please Call or Email Us to Check Availability
Videx, 701T/24, BST/GMT 24V Digital Time Clock
Time clock with 2 line back lit LCD display, trade button input and automatic BST/GMT correction. Dry Contact 3A rated relay output (CO, NO & NC).
Six fully programmable ON/OFF times. The times can be set for a single day of the week, weekends, week days or all days. To disable an ON/OFF time simply set the ON time the same as the OFF time. (Note for ON/OFF period 1: If that period is on it will still switch off when ON/OFF are set the same).
Three month rechargeable on board battery backup that will maintain the correct time and all time bands during mains failures. The battery backup facility can be disabled, by moving JP3 into position B. Automatic British summer time correction (BST/GMT).
If this feature is not required it can be disabled, by moving JP2 into position A. Manual override button to toggle the relay on and off in standby mode (NOTE: The manual override is attached to time band 1 and so will switch off at the off time of time band 1 (Unless another time band is also set to on). For all other time bands the relay will stay in the state it is left until the next on then off time period). Trade button input: When the time clock is used in trade mode, the relay will only energise when the trade button is pressed and then, only during an active time band.
The time clock can be switched into trade mode by moving JP1 into position A. When JP1 is in position B the relay will energise for the full duration of an active time band. Trade activated relay time can be adjusted from 1 second up to 99 seconds during programming.
All information is displayed on an easy to read 2 lines 16 characters back lit LCD display. the time clock is mounted within an ABS white wall mountable plastic box.
Specifications:
- Input voltage - 24V ac or dc
- Programmable periods - 6
- Dimensions - 110mm x 70mm x 30mm
- Battery back up - 3 months - trickle changed
- Modes - 2, Timelock mode and trade button mode
- Display - 2 line 16 characters per line back lit
