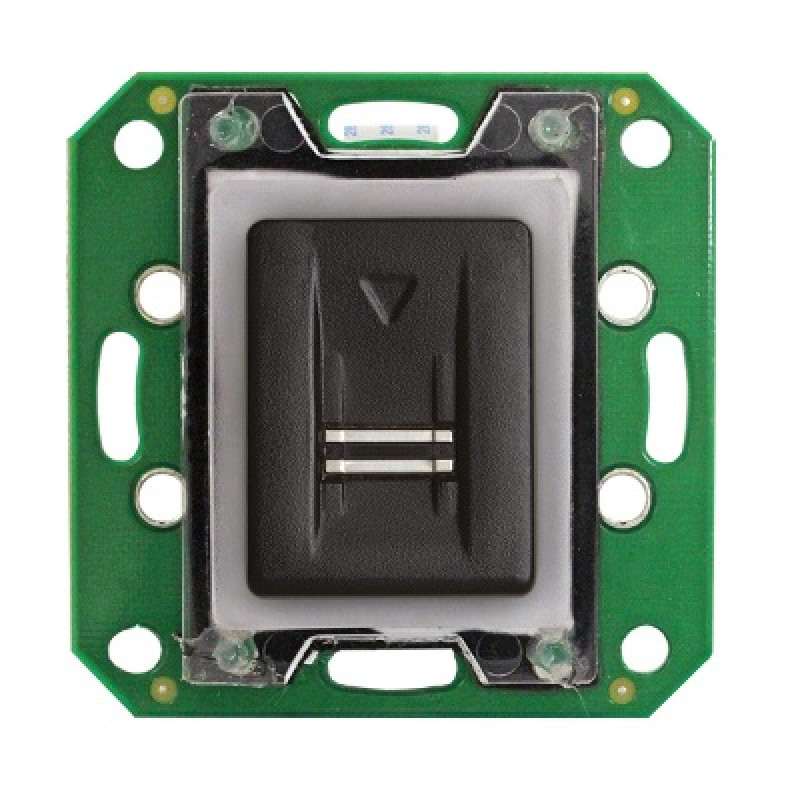

DINB100-E, Finger Print Reader Electronics (100 templates) with Wiegand Output

Videx, DINB100-E, Finger Print Reader Electronics (100 templates) with Wiegand Output (Requires DINFP face plate, see below)

A new range of access control keypad, biometric and proximity reader electronics which provides enhanced features and aesthetics for businesses and residential properties.

The DIN reader electronics are taylor-made and are compatible with standard single or double gang back boxes, making installation simple. The stand alone or networked keypads, proximity readers, biometric readers and exit switches can be housed alone in a single gang back box, or combined within a double gang back box. Available DIN electronics:

Networkable: DINB100-E – Swipe finger print reader electronics (100 templates, Wiegand output & RS485)

Key Features:

• Keypad, Proximity reader, Biometric reader and touch to exit electronics housable in a single or double gang electrical back box
• 6 different colour faceplates available in single or double gang

Specification:

• Operating voltage: 12Vdc
• Current consumption: 100mA (max.)
• Biometric sensor: Capacitive swipe
• Fingerprint templates: 100 (1x admin; 1x installer; 98x templates)
• Output: Wiegand (26 bit), RS485
• IP rating: IP40
• Mounting: standard UK single gang electrical flush box
• Wiring: Terminal block
• Operating temperature: 0° to +40°C

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
