Videx, DINMTPX-M-E, DIN EM Proximity Reader Electronics with Flush Back Box
- Brand:Videx
- Product Code:DINMTPX-M-E
- Availability:Please Call or Email Us to Check Availability
Videx, DINMTPX-M-E, DIN EM Proximity Reader Electronics with Flush Back Box

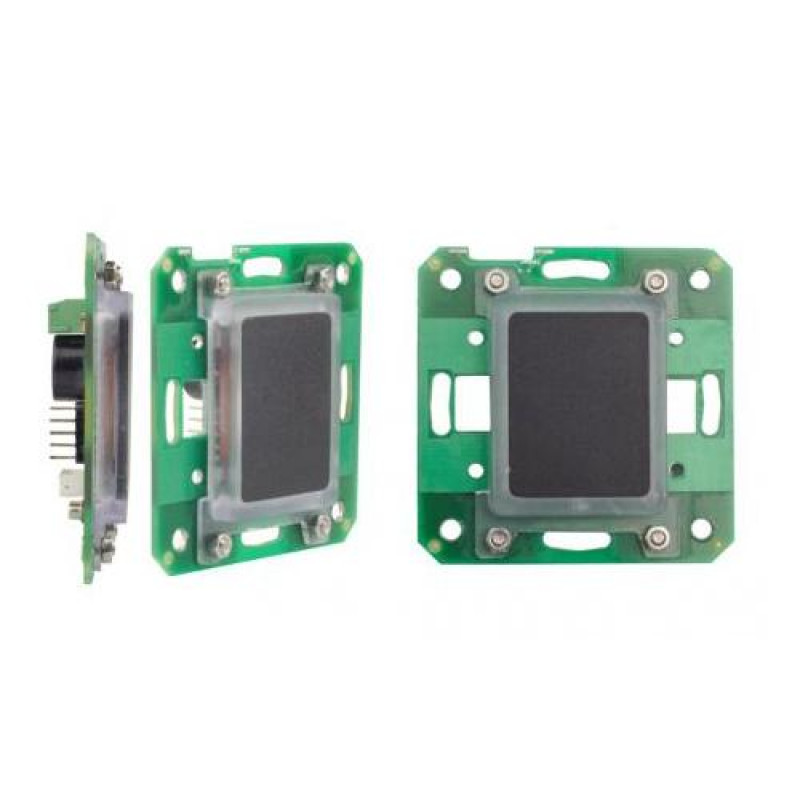

Low profile Wiegand EM proximity reader supplied with a flush mount back box, including a sounder and tri-colour LED halo to indicate active, accept and denied states. The DINMTPX-M has a selectable wiegand output (26 or 34 bit) and is capable of reading EM4100 cards / fobs (125Khz). Requires cover frame (available in 6 different colours).
Specifications:
- Operating voltage: 9-14 Vdc
- Current consumption: Max. 45mA
- Operating frequency: 125Khz
- Read range: Max. 7cm
- Reader output: Wiegand 26 or 34bit
- IP rating: IP40
- Housing: ABS
- Mounting: UK electrical flush back box
- Wiring: Terminal block
- Operating temperature: -25° to +50°C
