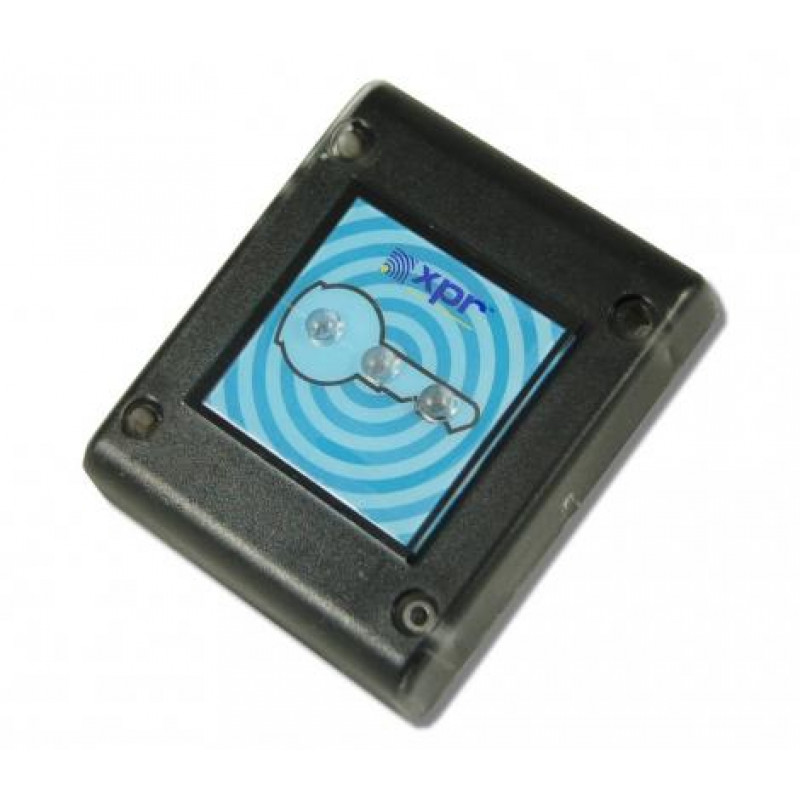

Videx, XPROX, Panel Mount Wiegand Proximity Reader for Portal Plus
- Brand:Videx
- Product Code:XPROX
- Availability:Please Call or Email Us to Check Availability
XPROX, Videx, Panel Mount Wiegand Proximity Reader for Portal Plus
Panel mount Wiegand proximity reader module for use on vandal resistant panels and with systems such as the Portal Plus. Includes 3 LED's for status of standby, accept and denied and a sounder. Requires 6 connections to the controller which should be no more than 50m.
Features:
- Proximity, bio access and coded access all available
- 2 Door controllers
- Up to 15000 users
- Expandable to unlimited doors using multiple controllers
- Up to 30000 events stored while off line (Per controller)
- 24 User defined time zones
- Unlimited user groups
- Anti-pass back and man trap programmable features
- Controllers available with TCP/IP integration
- 2x Lock relays per controller (Dry contact 10A relays)
- 2x Auxiliary relay outputs (Dry contact 10A)
- 2x Auxiliary inputs
- 2x Push to exit button inputs
- 2x Door monitoring inputs
- 16 status LED’s per controller for engineers
- All plug in connections for engineers
- Each controller has a unique address to simplify the installation
- Controller firmware upgradable via PC software
- Reader inputs programmable (26bit to 128bit)
Specifications:
- Material: Plastic
- Output: Wiegand 26 bit
- Voltage: 12Vdc
- Status LED's: 3
- Sounder: Yes
- IP Rating: IP65
- Window: 40mm x 40mm
- Fixing holes: 49mm x 49mm
For more details, please refer with our attached datasheet.
