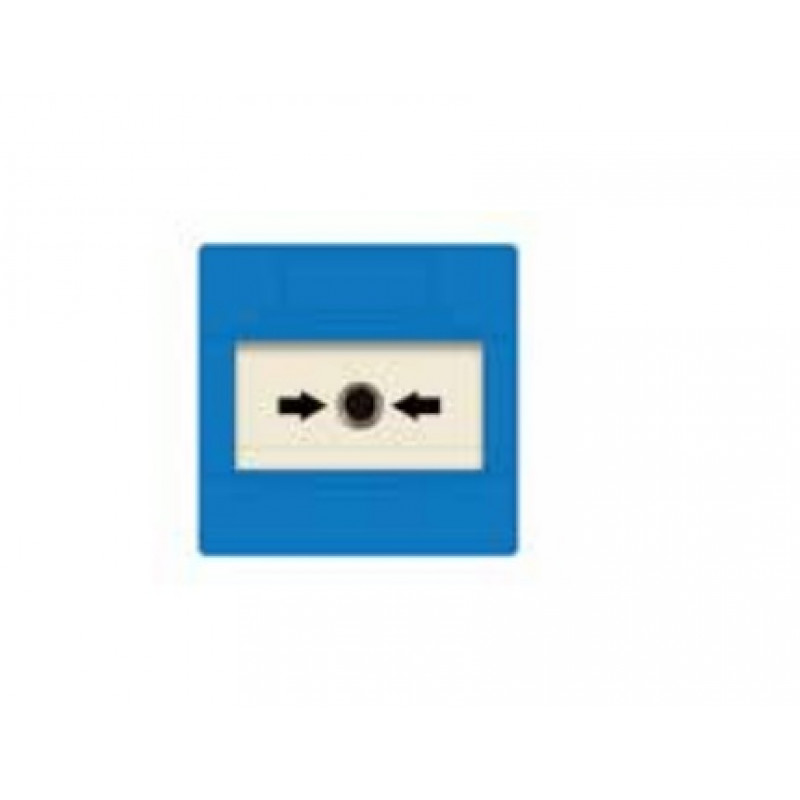

SY-BF01, Hydrosense Manual Alarm Call Point (Blue, Flush Mount)

SY-BF01, Hydrosense Manual Alarm Call Point (Blue, Flush Mount)

Sycall Reset-Glow Weatherproof range includes all the features of the standard call point plus the operating capability to withstand harsh environmental conditions such as rain, high humidity and dust. The Reset-Glow Weatherproof range retains the standard ‘Reset- Glow’ features within a rugged weather-sealed moulded enclosure. The extended housing provides for symmetrical fixings on the front face of the unit and contributes to its physical protection for reliable operation.

Key Features:

• Clean contact or choice of 470 Ωr 680 Ω series resistors in the same model
• Aesthetically appealing design
• Approved to EN 54 Part 11 (Red Only)
• Resettable Element
• Optional highly visible LED Light ring when activated
• Luminescent element visible for up to 8 minutes hundreds.

Specifications:

• Maximum Voltage - 30 V dc
• Minimum Voltage* - 4.5 V dc if LED with R1 is chosen, 6.0 V dc if LED if R2 is chosen
• Current Rating (non activated) - 0 mA
• Current Rating (activated) -
  • 18 mA @ 12 V dc -R1
  • 13 mA @ 12 V dc -R2
  • 45 mA @ 24 V dc -R1
  • 31 mA @ 24 V dc -R2
• Cable Termination - 0.5 2.5 mm2
• Operating Temperature - -30 to +700 C
• IP Rating - IP42
• Material -ABS/Polycarbonate/PA6+Glass Fibre.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
