Videx, VR4K-2, 2 Button 4000 Series Vandal Resistant Flush Audio Door Kits (Includes Standard Engraving, 2 Characters Per Button)

VR4K-2, Videx, 2 Button 4000 Series Vandal Resistant Flush Audio Door Kits (Includes Standard Engraving, 2 Characters Per Button)

Vandal resistant audio entry kit based on the 4000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The vandal resistant door station is available flush mounting with 2 call buttons. Engraving of up to 2 characters per button is included. The finish is a 12 gauge stainless steel with gun metal grey surround. Two Led's give confirmation of call and lock release. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional handsets can be connected in each apartment. These telephones can be desk mounted with the addition of a 3038A desk kit. A codelock can be added (/CL). The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.

Specification:

• Number of entrances: 1
• No. Of cores to telephone: 5
• Recommended cable type: CW1308
• Maximum No. Of telephones per call button: 3
• Lock output: Dry contact (C NO NC)
• Telephone model: 3111 (call tone)
• PSU model: 321 (13Vac)
• Amplifier module: 136 (12Vdc)

VR4K Series Vandal Resistant Audio Kit:

• VR4K is a new range of vandal resistant audio kits, developed from the popular 4K series.
• The face plate is manufactured from 2.5 mm stainless steel and incorporates IP68 stainless steel push buttons.
• The face plate is housed in the 4000 series front support frame, which gives the unit substantial strength.
• Disability Friendly, with acoustic and visual signalling of the system status (conversation in progress and door open indication) Reassurance tones are standard.
• Multiple entrances (up to 4) without the need of the 2 entrance exchange unit.
• Dry contact relay for lock release connection.

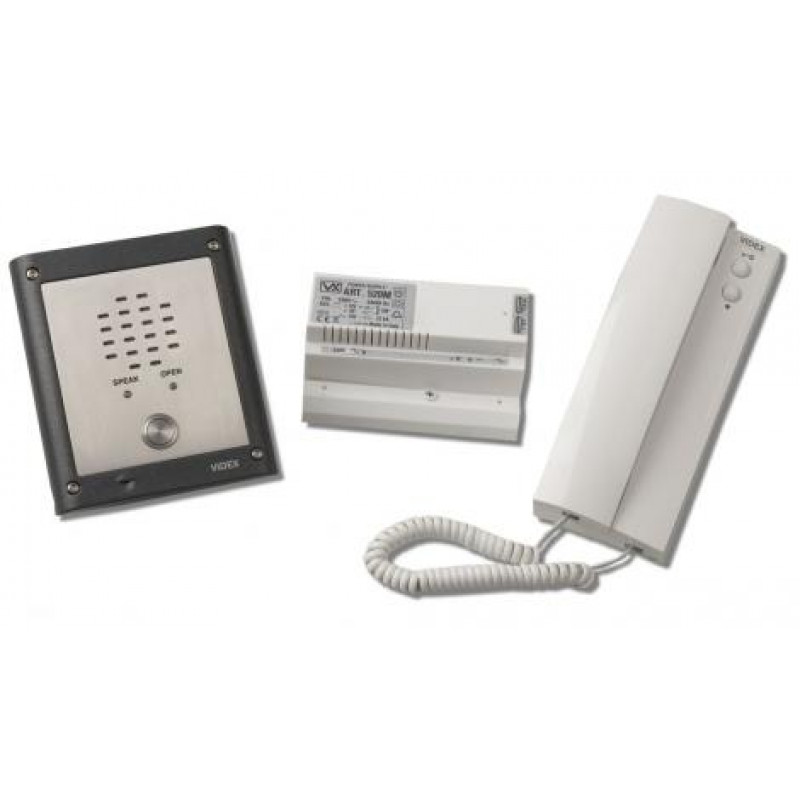

Two button flush door entry kit comprising of:

• 1 Outdoor station including one call button speaker unit module Art.VR4KAM-1 and a flush mounting box with module support and hinge Art.4851. Standard finish: brushed stainless steel for the front plate and gun metal grey for the module support.
• 1 Art.3111 3000 Series wall mount telephone with “door open” and “service” push buttons and electronic call tone with 3 level adjustable volume control.
• 1 Art.520M Power Supply in a type A 8 module DIN box.

Packing: Cardboard 24x26x7 cm total weight 2.1 Kg.
