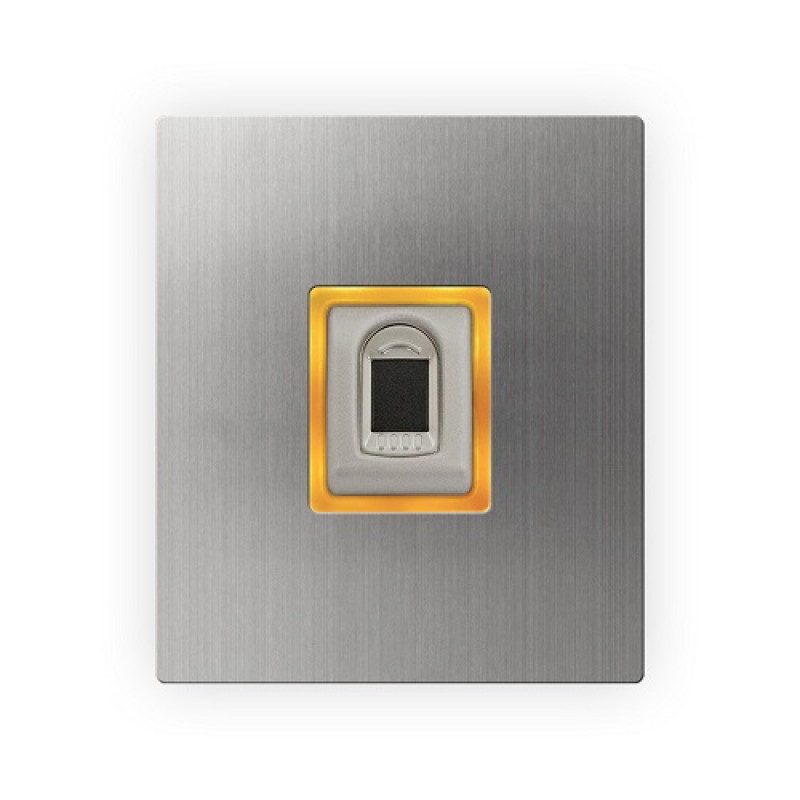

Videx, VR4KBIO, Finger Print Reader Module with Wiegand Output
- Brand:Videx
- Product Code:VR4KBIO
- Availability:Please Call or Email Us to Check Availability
Videx, VR4KBIO, Finger Print Reader Module with Wiegand Output
A range of capacitive and swipe capacitive biometric fingerprint readers are available for the Portl Plus access control system. Both flush mounting and surface options available as either self-contained fingerprint readers or available within the VR4K series and VR120 series vandal resistant series range.
With a storage capacity of up to 9500 fingerprints (for the BIOCS, VR4KBIO and DINBIOC) and a storage capacity of up to 100 fingerprints (for the B100S and DINB100-E) both types of fingerprint reader have programmable Wiegand outputs of 8 to 128 bits (deafult 26 bits). They also include RS485 connectivity used for fingerprint transfer and configuration. Biometric reader configuration and fingerprint enrolment is carried out through the PROS CS software.
The self-contained surface fingerprint readers are available in a moulded aluminium silver housing. The DIN biometric fingerprint electronics are designed for flush mounting and are designed to fit into a standard UK single gang electrical box with the option of either a silver, charcoal or white front DIN face plate cover (DINFP series).
Key Features:
- A range of flush & surface Portal Plus biometric fingerprint readers
- Capacitive and swipe capacitive fingerprint readers
- RS485 and Wiegand connectivity
- Wiegand communication protocols 8 to 128 bit (default 26 bit)
- Storage capacity of 9500 fingerprints (BIOC, VR4KBIO & DINBIOC)
- Storage capacity of 100 fingerprints (B100S and DINB100-E)
- Status indication LED's (Tri-colour halo LED) and internal sounder
- Low current consumption fingerprint readers
- Programmable via the PROS CS software
Technical Specification:
- Power input: 12Vdc (powered from Portal Plus controller)
- Current consumption: 100mA max.
- Output Protocol: Wiegand 8 – 128 bit (default 26 bit)
- Connectivity: RS485 & Wiegand
- Fingerprint sensor type: capacitive
- Fingerprint capacity: up to 9500
- Status LED’s: Tri-colour halo LED (green = accept, red = denied & amber = standby/data) with internal sounder
- Compatible with 4000 series flush and surface back boxes
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
