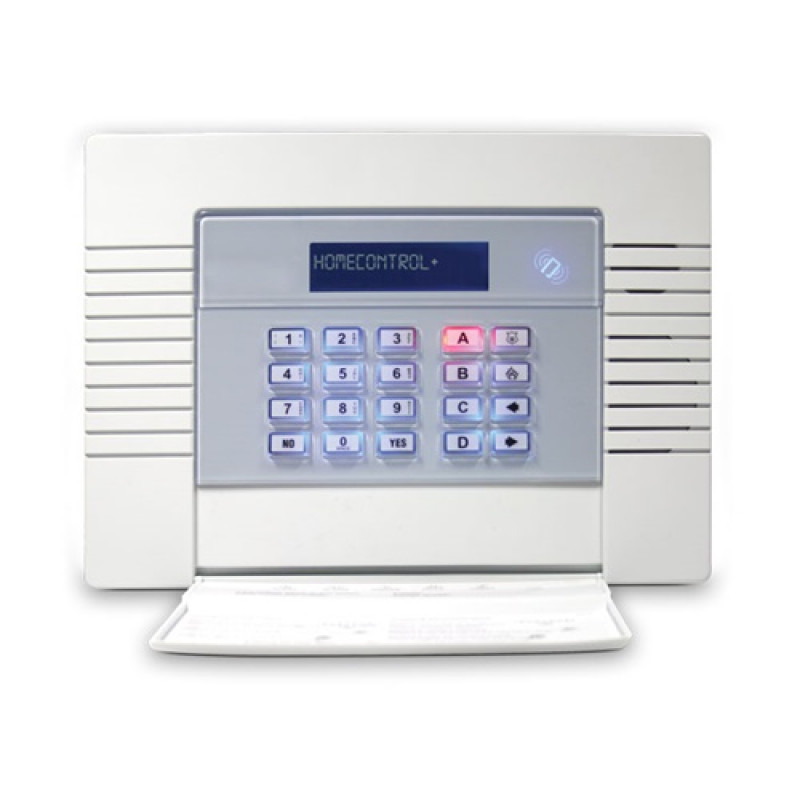

Pyronix (ENF32UK-WE) Enforcer HomeControl+ Panel

Pyronix (ENF32UK-WE) Enforcer HomeControl+ Panel

The brand new Enforcer HomeControl+ system delivers the security benefits of the multi-award winning two-way wireless Enforcer technology, as well as access and control of your home from anywhere in the world via your smart device.

With the release of the new 2.1 software you now get even more features.

CSL DigiAir Pyronix (available through CSL)
With V2.1, there is now the ability to add CSL ARC communication, which would allow for third party response capability to provide direct action of any disturbances.

This feature would be particularly advantageous should a user incur a disturbance when they are not in a position to receive a notification or take any action themselves.

Wireless Arming Station compatibility
Delivers maximum usability and convenience for both the installer and end user alike, the wireless keypad is both easily installed and a practical choice for an additional keypad in your property.

Up to 64 wireless zones with the EURO ZEM32-WE
You can now add up to 64 wireless peripherals your system by adding a EURO ZEM32-WE. This makes the whole system even more flexible and capable for larger installations.

Through the PyronixCloud and HomeControl+ App IP infrastructure, your smart phone can literally act as a portable keypad to allow you to receive customisable notifications, set and unset areas with easy padlock icons, check the status of every sensor on your system and open your garage, close a blind or turn on and off various appliances with simple switches.

Additionally, the introduction of 720p HD IP external and internal cameras to the HomeControl+ range provides the ability to add live video monitoring to your system. This means that now, rather than simply securing your home or commercial building, you can do that while checking on an elderly relative who perhaps lives on their own, checking on your property when the alarm is activated or checking that your children have arrived home safely from school.

The Pyronix HomeControl+ App is available in two versions: On Android™ from the Google Play Store, and on iOS™ from the Apple App store.

All the benefits of the Enforcer two way wireless technology now with an app.

No on site IT configuration
The Enforcer HomeControl+ App is connected through a cloud sever with 3 way verification, so there is no need to set up static IP addresses or configure the network connection on site. Instead you simply set up an account on PyronixCloud.com

Highly secure connection
The HomeControl+ App and PyronixCloud communications are fully encrypted to the highest standard and no sensitive user data is stored on the PyronixCloud.

Independent areas
The introduction of independent areas enables easier control of outbuildings, garages and sheds, allowing end users to unset areas of the system in isolation, without having to unset the system as a whole.

Key Features:

• Control your security system from anywhere in the world
• Get notifications & system status' from the palm of your hand
• Highly secure encrypted connection through the PyronixCloud
• All the benefits of the Enforcer two way wireless technology
• New 2.1 software includes: ARC connectivity, additional wireless inputs, Wireless Keypad compatibility and new communication options

Technical Specifications:

Control panel technical characteristics

• Two-way wireless technology : Yes
• Independent areas : 4
• Tamper protection : Front and rear
• User codes and prox tags : 80
• Reporting formats : DIGI-GPRS / DIGI-GPRS+SIM: SIA IP, Contact ID IP, SMS, Push Notification or DIGI-LAN / DIGIWIFI: SIA IP, Contact ID IP, Fast Format IP
• System logs : 750
• Areas : 4

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• Tranmission method : Fully encrypted rolling code
• Transmission range : 300m in open space

Inputs & outputs

• Input type : Wireless and wired
• Two-way wireless inputs : 64 with 1 EURO-ZEM32-WE
• Onboard wired inputs : 2
• Total inputs : 66
• Outputs on board : 2
• Two-Way Wireless Keypads : Max 4 (v2.1 software & above)
• Output modules : 1
• Maximum outputs : 38
• Two-way wireless keyfobs : 32
• Two-way wireless sirens : 2
• Wired keypads : Max 4 (Including panel)
• Readers and entry control : 3

Communications and modems

• Modem type (included) : None Included
• GPRS modem (optional) : Yes
• LAN modem (optional) : Yes
• WiFi modem (optional) : Yes
• Supports PyronixCloud & HomeControl+ App : Yes
• Formats : SIA IP, Contact ID IP, Fast Format IP
• ARC compatibility : Via CSL Digi Air Pyronix
• Compatible with UDL software : Yes

Environmental and operating features

• Storage temperature : -20°C to +60°C
• Certified operating temperature : -10°C to +40°C
• Nominal operating temperature : -10°C to +40°C
• Physical dimensions (H x W x D) : 220 x 160 x 50mm
• Weight : 1025g

Electrical & battery

• Battery type : NiMH 8 cell 2200mAh rechargeable battery
• Battery voltage : 12.71V (with no mains and battery fully charged)
• Low battery threshold : 8.9V
• Mains supply : 230V AC -15/+10%
• Operating voltage : 90 - 264V AC
• Supply current : 222 - 75 mA

Resistance (wired inputs)

• Normal : 3k7 or 8k3
• Intruder : 8k4 to 10k2
• Tamper : <3k7 or >23k

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-1:2006+A1:2009, EN50131-3:2009, EN50131-6:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : Self-certified
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
