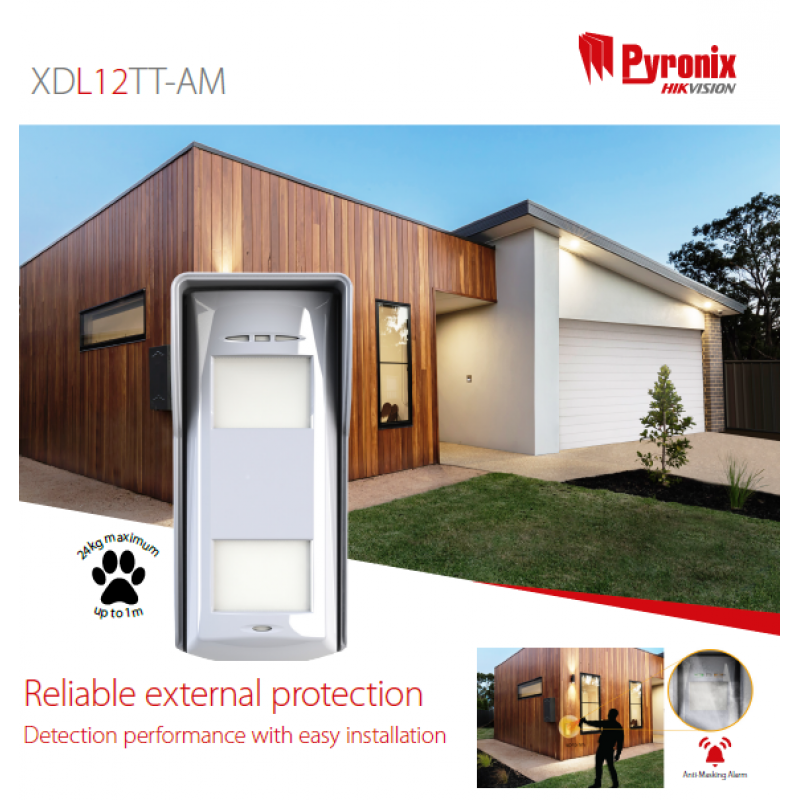

XDL12TTAM3, 10.587GHz Tri Anti-Mask EXTERNAL PIR 12m External Detector

XDL12TTAM3, 10.587GHz Tri Anti-Mask EXTERNAL PIR 12m External Detector

  • Brand:Pyronix
  • Product Code:XDL12TTAM3
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


XDL12TTAM3, 10.587GHz Tri Anti-Mask EXTERNAL PIR 12m External Detector

Up, down & all-round external detection Protecting the perimeter, whatever the weather

  • Tri-Signal Detection
  • Dual-Vision Pet Immune
  • Anti-Masking
  • Anti-Blocking
  • Anti-Sway Analytics
  • Blue Wave Technology (BWT)
  • Multi-configurations
  • Weatherproof
  • Heavy duty design
  • Adaptable coverage
  • Flexible installation
  • Easy setup

Low mount, pet-tolerant external detector, featuring Grade 3 and 4 technologies

Consisting of two independent passive infrared (PIR) sensors and one microwave sensor in one common housing, Tri-Technology (TT) utilises Tri-Signal Detection Logic whereby to identify the presence of an intruder, all three sensors need to be activated sequentially in quick succession to create an alarm.

Protect while allowing for pets with Dual-Vision Pet Immune

The two PIRs of the XDL12TT-AM have a dedicated volumetric field of view. The top PIR detects outwards and up, while the bottom PIR detects outwards and down, without either crossing the central horizontal place between them. This setup of non-overlapping PIR sensors alongside Tri-Signal Detection Logic, delivers highly secure sequential detection and increases its tolerance to pet immunity.

Ultimate outdoor performance with Anti-Sway Analytics

An advanced filter that allows the XDL12TT-AM to distinguish between the movement of trees and plants from that of an intruder. It is designed to maintain optimum performance and reduce false alarms in environments with windy weather conditions and swaying vegetation.

Arming safely and beat the burglar with Anti-Interference Technology

  • Anti-Masking
    This Patented Grade 3 Technology provides superior protection against any attempts to mask any of the three technologies within the detector from a variety of materials, such as: cardboard, duct tape, sprays, lacquers or aluminium foil.
  • Anti-Blocking
    This Grade 4 Technology prevents the system from being armed if there is anything blocking the field of view of any of the sensors within the detector. This would need to be removed before the system will arm.

Protected whatever the weather with IP55 rating

The XDL12TT-AM boasts IP55 weatherproof rating, which means that whatever the weather, the brand-new detector is durable and reliable with protection from dust ingress, high density rain, snow and water jets from any direction. To ensure this, the rubber gasket on the lens and the foam gasket on the PIR sensor seal the detector against all weather conditions and humidity.

A key weatherproof feature of the XD is its tolerance to ultraviolet light. The lenses and housing are manufactured with materials of the highest standard and are also coated with a heavy duty ultraviolet filter, ensuring that that the XD’s performance is not compromised.

Designed for maximum convenience with easy installation

  • Walk-test buzzer
  • Adjustable PIR/MW range
  • Status LED indication
  • Pre-drilled cable entries
  • Selectable EOL resistors

Specification:

Detectors technical characteristics

Blue Wave technology

Yes

Digi logic technology

Tri-detection logic

Automatic sensitivity

Yes

Set sensitivity

Auto or high

Digital temperature compensation

Yes

Dual element pyro-electric sensor

Yes

DEOL resistor on board

Tamper, alarm and mask

Tamper protection

12V DC 50mA both front and rear

Intergrated walk test buzzer

Yes

Separate LED indication

Top: Microwave, PIR 1 and alarm | Bottom: PIR 2

Digital independent floating threshold (IFT) technology

Yes

Standard temperature compensation

Yes

Frequency range

9.9GHz

Anti-sway analytics

Yes

Waterproof

Yes

Casing

3mm polycarbonate, 0.4mm HDPE in lens area

Detectors technical characteristics

Maximum range

12m

Volumetric coverage

85° coverage

Curtain coverage

17° coverage

Animal immunity

Up to 35kg | 1 - 1.5m (mounting height of detector)

Tri technology

Yes

Detection speed

0.25 - 2.5 m/s

Detection zones

22 (11 top, 11 bottom)

Detection planes

2

Adjustable antimasking (antispray)

0 - 1m tri-masking covering all 3 technologies

White light filter

Yes

Protection

Tri-anti-masking technology | IP55 rated

Lens

UV compensated

Optics

Dual-Vision Sealed Optics

Detection method

Tri-signal detection logic

Anti blocking technology

Yes

Sensor

2 low noise dual element passive infrared sensors and a microwave doppler unit

Mounting

Wall mounted

Optional brackets: | XD-FIXEDBRACKET | XD-WALLBRACKET | XD-45D-ADAPTER

Optimum coverage height

1.2m

Environmental and operating features

Storage temperature

-40°C to 80°C

Certified operating temperature

-25°C to 60°C

Physical dimensions (H x W x D)

188 x 77 x 84mm (7.4" x 3" x 3.4")

Weight

300g

Electrical & battery

Operating voltage

9-16VDC, 13.8VDC typically

Supply current

~24mA @ 13.8VDC

Relay outputs

3 x SELV limits, 60VDC ~50mA (42.4VAC peak)

Tamper switch

12VDC 50mA both front and rear

Certifications and warranty

Environmental class

IV

Security Grade

2

Certification type

Self certified

Electrical conformity

CE

Warranty

5 years (excluding lens)

EN Certificate

PD6662:2017

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
