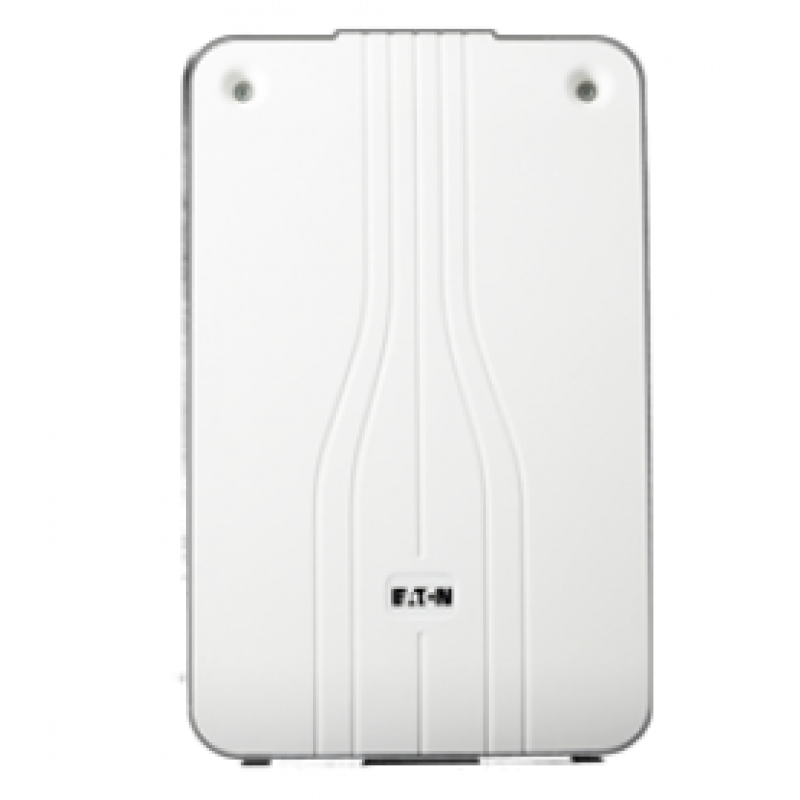

Eaton i-on30R, 30 zone radio control panel, expandable up to 60 hybrid zones

Eaton i-on30R, 30 zone radio control panel, expandable up to 60 hybrid zones

  • Brand:Eaton
  • Product Code:i-on30R
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Eaton i-on30R, 30 zone radio control panel, expandable up to 60 hybrid zones

The i-on30R, a 30 zone radio panel offers straightforward secure configuration using the enhanced web browser and is compatible with Eaton’s full range of radio peripherals and plug on communicators.

Feature packed to deliver you real benefits.

Highly secure encrypted web browser: mobile and tablet friendly interface for easy on-site system configuration
Email notification: Provides detailed system event information and image verification, when alarm is activated
SIA over IP: IP communication to your ARC with no requirement for a PSTN line, removing call charges and line fees.

Easy updates

Panel software updatable: provides choice of easy firmware update methods using Ethernet, USB and SD card

Key Features:



  • 30 zones on-board expandable to 60
  • Hybrid expansion using EXP-R10/R30/W10/PSU
  • Ethernet/ web server/ virtual keypad
  • Visual verification
  • Perimeter zone functionality
  • SMS control
  • Plug on ARC/ Speech/ SMS for PSTN/ GSM
  • Class leading Scantronic radio
  • UDL/ ARD over IP or PSTN
  • EN50131 Grade II: Independently approved

Product Specification:

Compliance EN50131-1:2006 + A1:2009 Grade 2 and environmental class II, EN50131-3:2009, EN50131-6:2008,
BS8243:2010, PD6662:2010 + IA1501:2015
Zones 30 Radio on board, expandable to 60, all fully programmable
Partitions 4 independent partitions each with a part set or full set and three part set
Users 30 user codes, 4 digit PIN number, proximity, remote control or radio panic button
Event log 1000 events; 750 mandatory events and 250 non-mandatory
Outputs One 500mA open collector programmable outputs
10 radio outputs
Bus devices Accepts up to 20 bus devices (keypads, expanders and power supplies)
Internal sounder One independently controlled 16 Ω speaker
4 internal radio sounders
External sirens Dedicatated Siren and Strobe open collector output
4 External Radio Sirens
Remote communications SIA IP via built in Ethernet port
Email and images via via built in Ethernet port
Footprint for connection of a range of alarm communications modules as described below
Visual verification Up to 4 IP cameras
Power supply Conforms to EN50131-6:2008 Type A power supply, rated power output 1.0A. 650mA is available for
auxiliary power
Configurations options Downloader via USB, IP or plug-on comms module, web browser via built in Ethernet port
Battery Accepts a 12v standby battery up to 7Ah rechargeable lead acid, gel type
Dimesions End station: 384 x 245 x 94mm
Weight End station: 2.2kg
Temperature range Environmental class II. Tested -10°C to 55°C @ 93% RH
