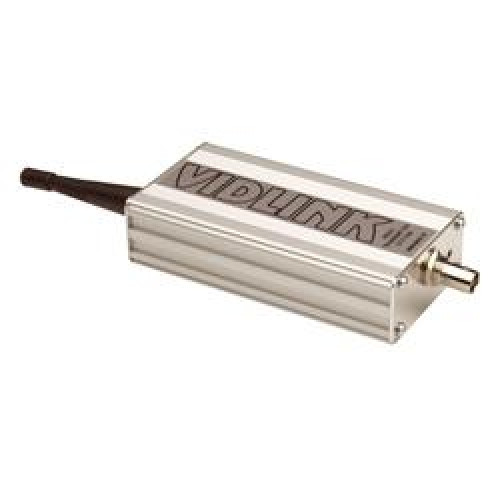

Radiocontact, CCT1394/RX, -90dBm Wireless Video Receiver
- Brand:Radiocontact
- Product Code:CCT1394/RX
- Availability:Please Call or Email Us to Check Availability
Radiocontact, CCT1394/RX, -90dBm Wireless Video Receiver
Maximum transmission ranges are achieved when the equipment is pole mounted with clear line of sight i.e. with no obstructions such as trees, hills, buildings etc. The higher the equipment is mounted above ground the better the system performance. A field trial is necessary on all sites to ensure local conditions are favourable.
Key Features:
- Range: 1000m standard version
- 5000m with Yagi Antenna
- 500mW providing better performance and range
- Dimensions 125 x 64 x 32 mm
- Weight: 300gr approx.
- Supplied with Mounting Bracket
- Weather proof boxes to IP65 available
- RF Input filter for interference rejection
Receiver Specifications:
- Input Sensitivity: -90dBm
- I.F.: 480MHz
- Bandwidth: 20MHz Nominal
- Image Rejection: 40dB
- Demodulation: PLL
- De-emphasis: CCIR PAL 401-1
- Video Output: 1V, into 75 Ohms
- Voltage: 12V d.c. @ 500mA
For more details, please refer with our attached datasheet.
